Turbocharged Intercooled Excavator Engine Assembly 140kW 190HP Deutz TCD2013L064V
| Brand Name | Deutz |
|---|---|
| Model Number | TCD2013L064V |
Product Details
| Engine Model | Deutz TCD2013L064V | Engine Type | Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged & Intercooled Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 94mm × 130mm | Displacement | 7.14L |
| Compression Ratio | 18.0:1 | Rated Power | 140kW (190HP) @ 2300rpm (ISO 3046-1) |
| Maximum Torque | 720Nm @ 1400-1800rpm | Fuel System | Electronic Common Rail Direct Injection (CRDI) , High-pressure Common Rail |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Forced Water Cooling With Thermostat + Oil Cooler (air-to-water Intercooler) |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 18L (including Oil Filter And Cooler) |
| Fuel Consumption | Approx. 205g/kW·h (at Rated Power, Low Fuel Consumption) | Starter Type | Electric Starter, 24V/5.5kW |
| Alternator | 24V/80A (110A Optional) | Dry Weight | Approx. 580kg |
| Dimensions (L×W×H) | 1560mm × 750mm × 1080mm (approx.) | Emission Standard | EU Stage IIIB / EPA Tier 4 Interim (off-road Engineering Machinery) |
| Key Features | Electronic Control, Low Noise/vibration, Cold Start At -25℃, Long Service Life | Application | Medium Hydraulic Excavator (20-30 Ton), Wheel Loader, Motor Grader, Road Roller |
| Highlight | TCD2013L064V,Intercooled Excavator Engine,Excavator Engine 140kW |
||
Product Description

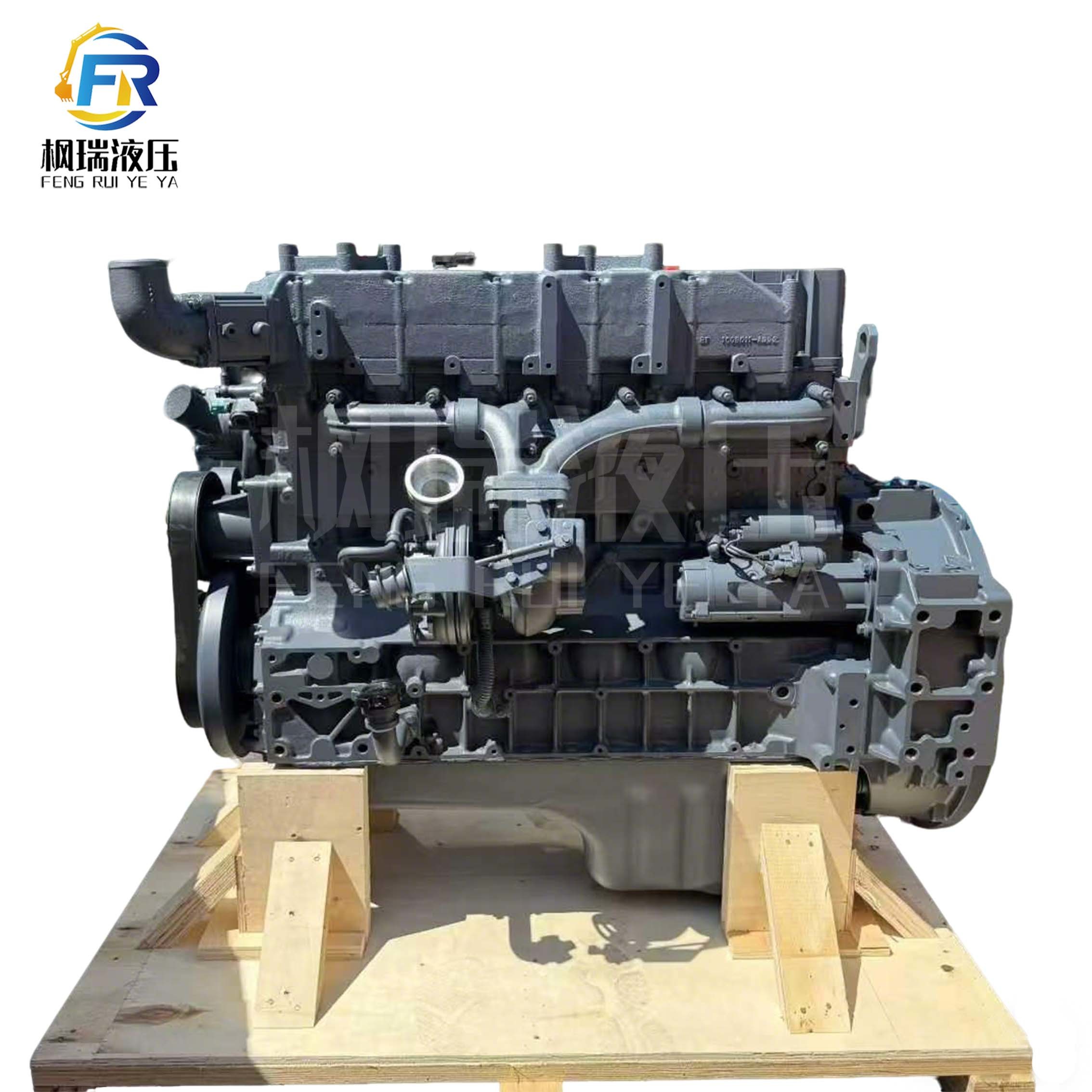

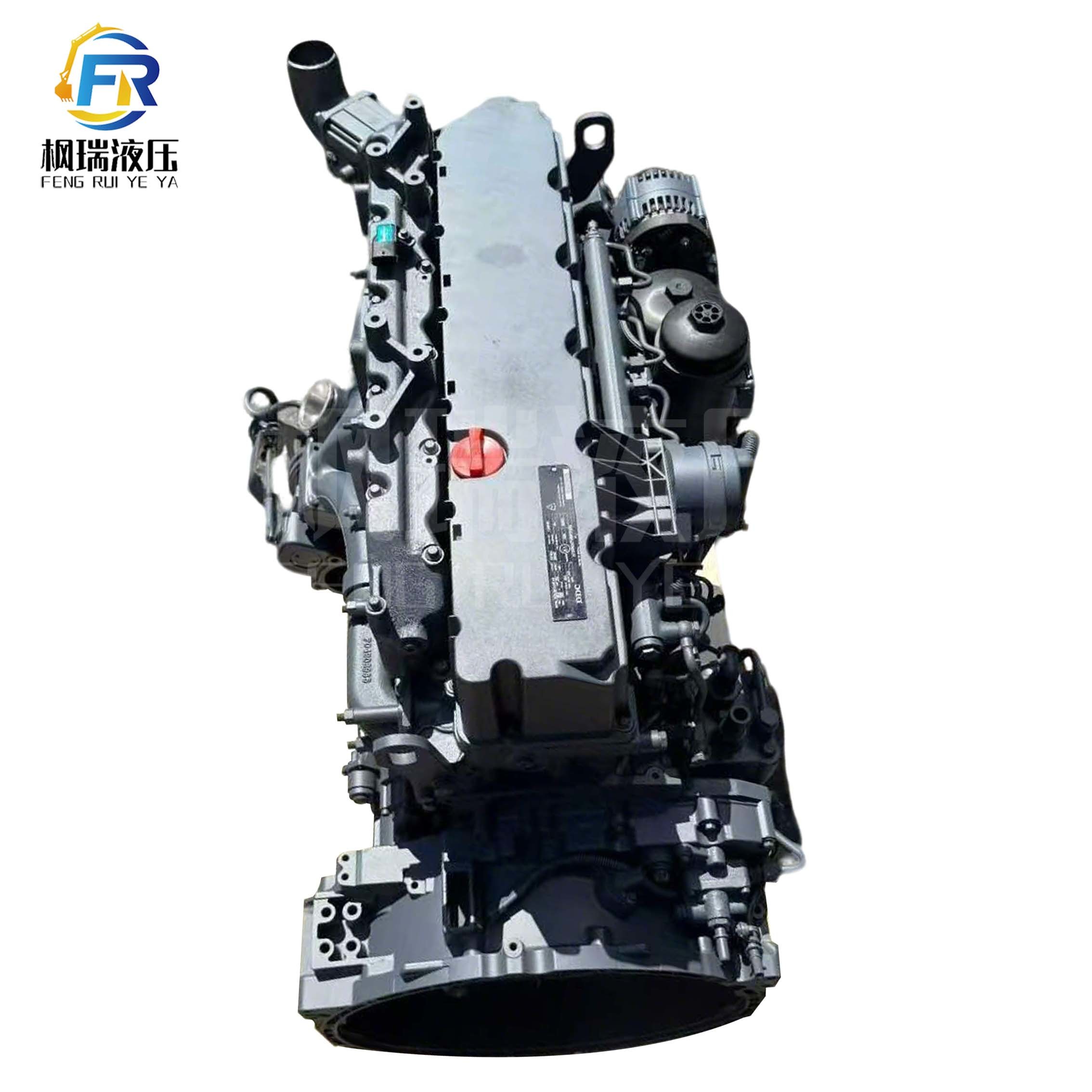

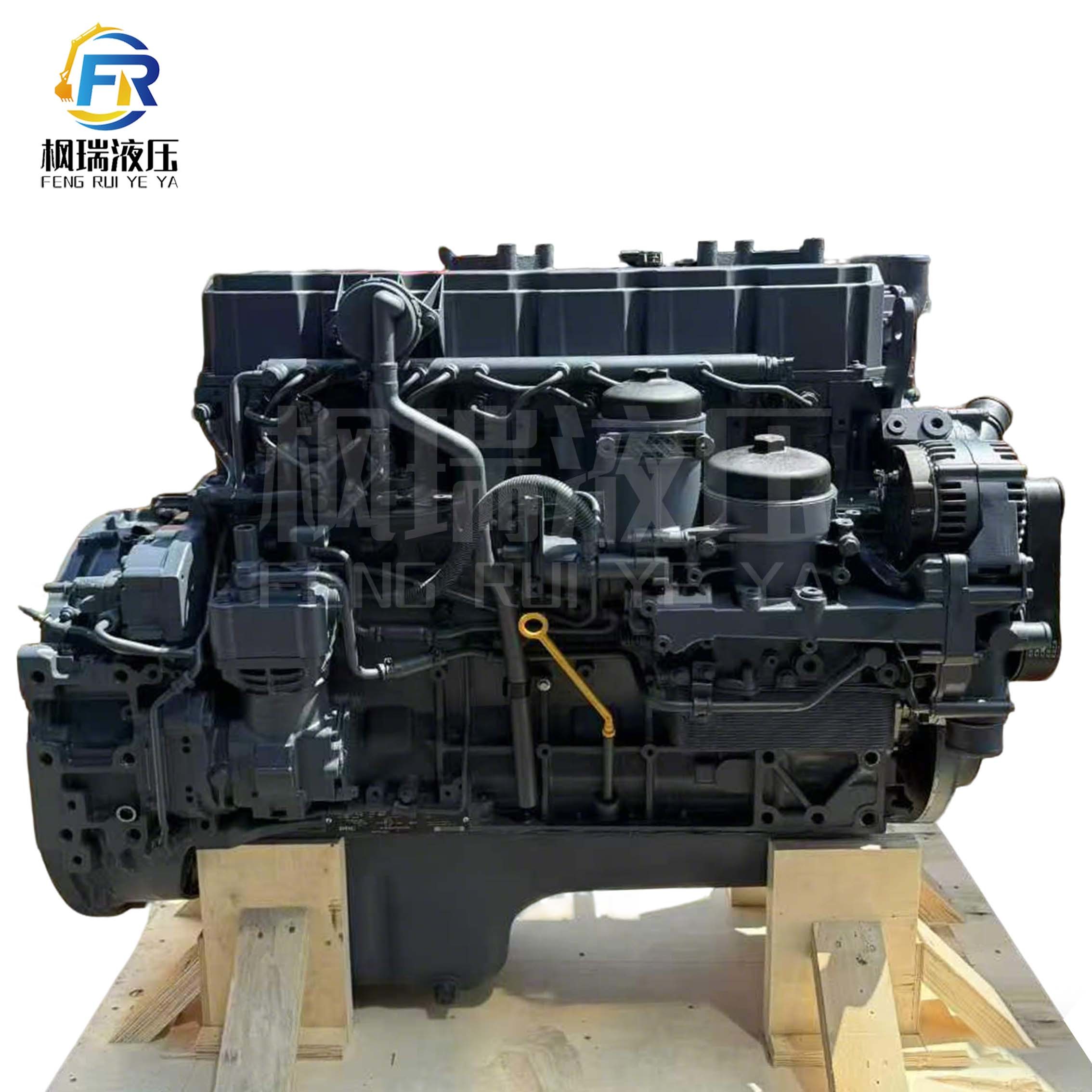

Deutz TCD2013L064V Engine Assembly
High-performance 6-cylinder turbo intercooled engine assembly specifically engineered for excavator applications. This Deutz TCD2013L064V engine delivers reliable power and exceptional durability for demanding construction and mining operations.
Key Features
- 6-cylinder configuration for balanced power delivery
- Turbocharged and intercooled for optimal performance
- Engineered specifically for excavator applications
- Deutz reliability and durability standards
- Advanced combustion technology for fuel efficiency
Technical Specifications
| Engine Model | TCD2013L064V |
| Cylinder Configuration | 6-Cylinder |
| Aspiration | Turbo Intercooled |
| Application | Excavator |
| Assembly Type | Complete Engine Assembly |
