Hino J08E 6 Cylinder Turbocharged Intercooled Engine Assembly 197kW 268HP
| Brand Name | Hino |
|---|---|
| Model Number | J08E |
Product Details
| Engine Model | Hino J08E (J08E-TM/J08E-TE Variants For Kobelco SK Series) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged With Intercooler, Direct Injection Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 112mm × 130mm | Displacement | 7.684L (7684cc/468.9 Cu·in) |
| Compression Ratio | 17.0:1 | Rated Power | 197kW (268HP) @ 2100rpm (ISO 9249) / 209kW (284HP) Max Variant |
| Maximum Torque | 998Nm (736lb-ft) @ 1600rpm | Fuel System | Mechanical Direct Injection System (some Variants With Electronic Control) |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Forced Water Cooling With Thermostat And Intercooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 22L (including Oil Filter And Cooler) |
| Fuel Consumption | ≤195g/kW·h (at Rated Power, High Fuel Efficiency) | Starter Type | Electric Starter, 24V/5kW, With Cold Start System |
| Alternator | 24V/80A (optional 100A) | Dry Weight | Approx. 680kg |
| Dimensions (L×W×H) | 1450mm × 728mm × 1320mm (approx.) | Emission Standard | EPA Tier 3 / EU Stage IIIA (off-road Medium-large Construction Machinery) |
| Key Features | Strong Power Output, Low Fuel Consumption, Excellent Durability, Easy Maintenance, Cold Start Capability At -20℃, 15000+ Hours Major Overhaul Period | Application | Kobelco SK320, SK330-8, SK350-8, SK350LC-8 Excavators (32-35 Ton Class), Other Medium-large Construction Machinery |
| Highlight | Engine Assembly 197kW,6 Cylinder Intercooled Engine,Turbocharged Engine 268HP |
||
Product Description

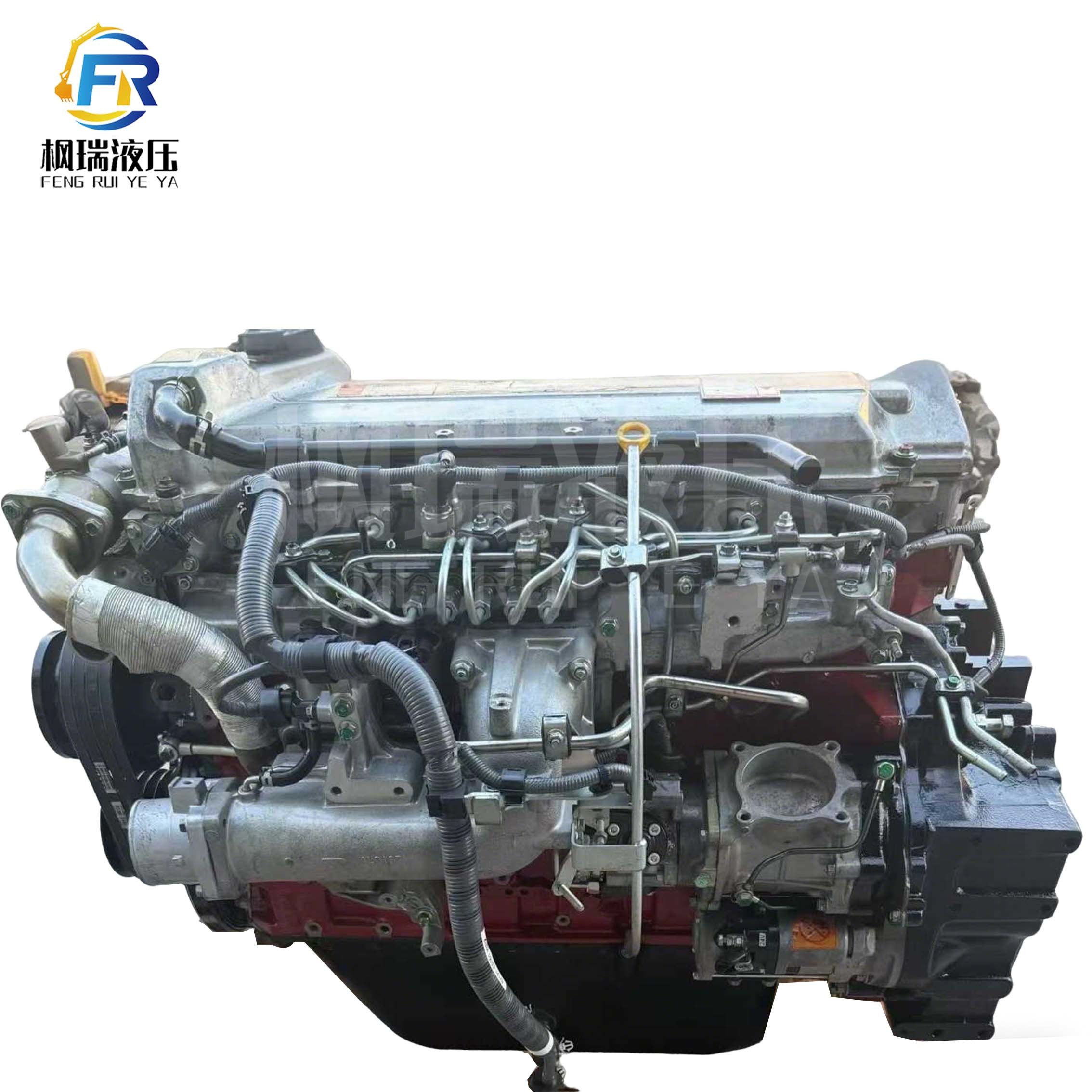

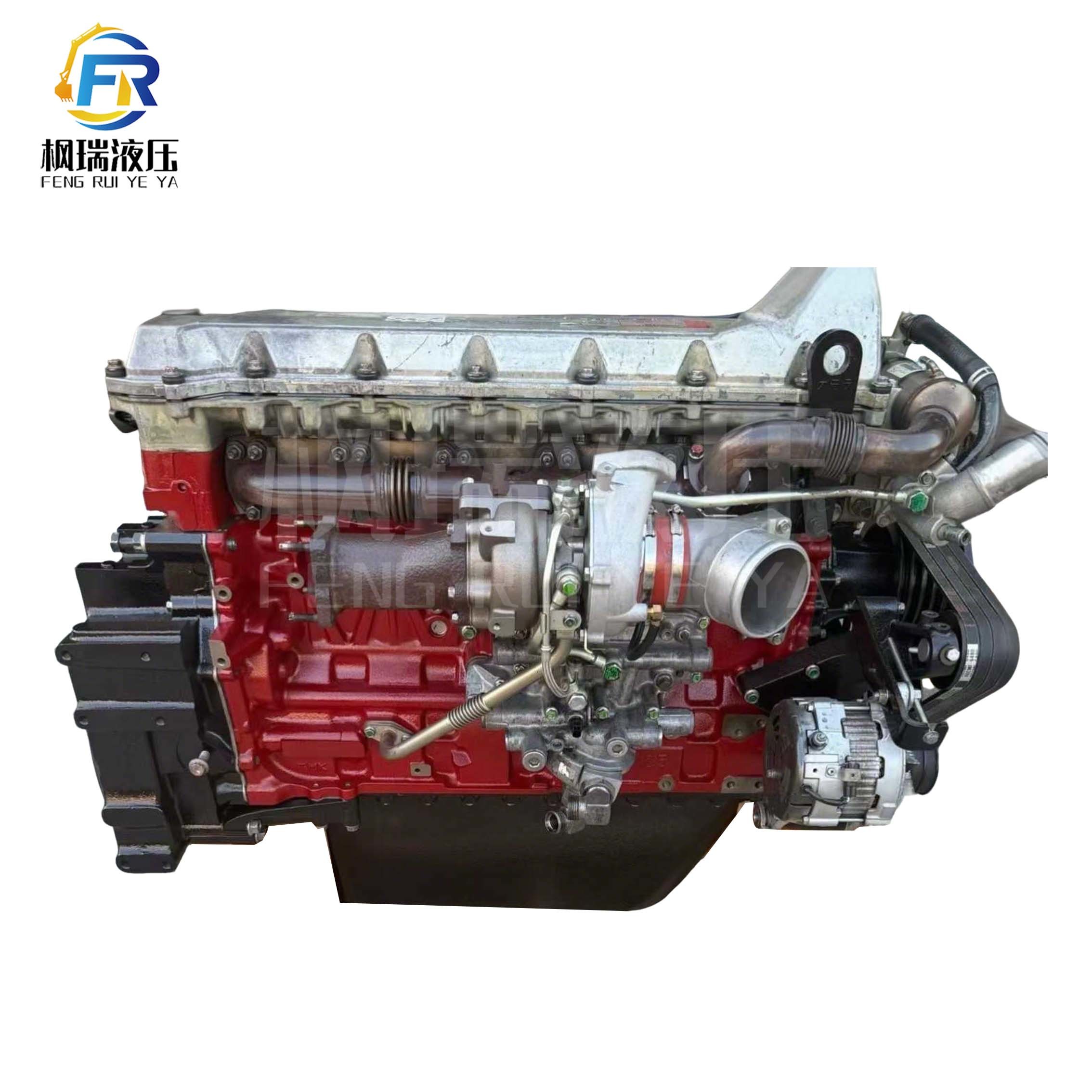

Hino J08E Engine Assembly - 6-Cylinder Turbocharged Intercooled 197kW/268HP
High-performance Hino J08E engine assembly specifically engineered for Kobelco excavators. This 6-cylinder turbocharged intercooled diesel engine delivers reliable power and exceptional durability for heavy-duty construction applications.
Key Features
- 6-cylinder diesel engine configuration
- Advanced turbocharging system with intercooler
- Power output: 197kW (268HP)
- Specifically designed for Kobelco excavator compatibility
- Robust construction for demanding industrial applications
- Optimized fuel efficiency and emissions performance
Technical Specifications
| Engine Model | Hino J08E |
| Cylinder Configuration | 6-Cylinder In-Line |
| Aspiration | Turbocharged with Intercooler |
| Power Output | 197 kW / 268 HP |
| Application | Kobelco Excavators |
| Engine Type | Diesel |
This complete engine assembly provides a direct replacement solution for Kobelco excavators, ensuring optimal performance and reliability in the most demanding construction and mining environments.
