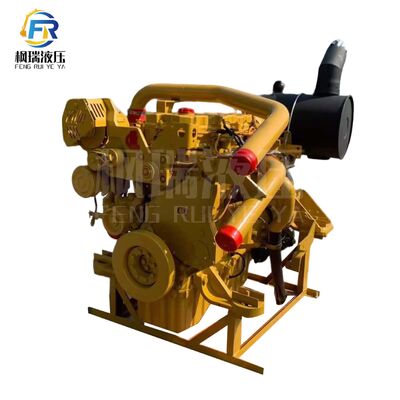

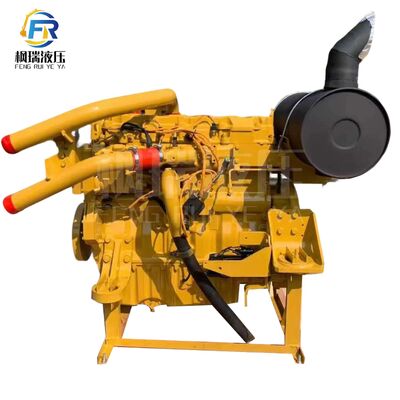

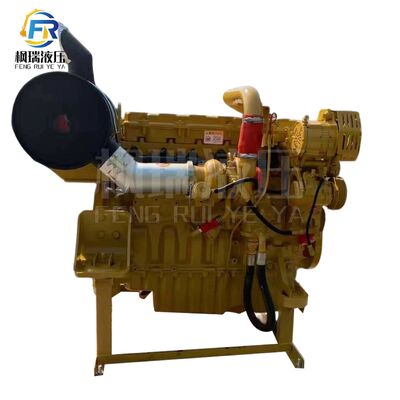

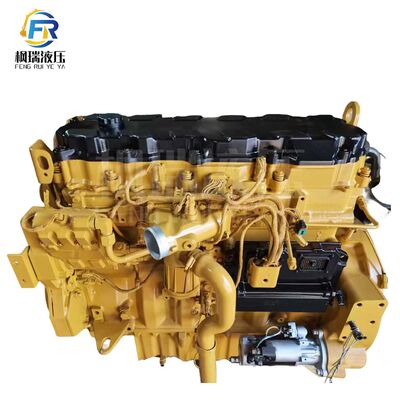

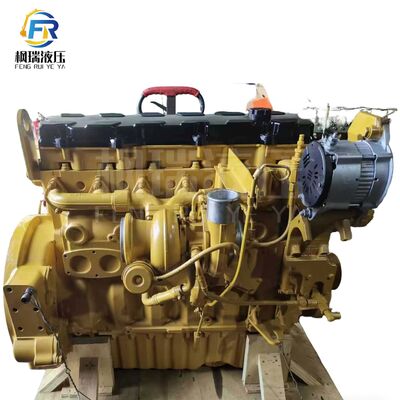

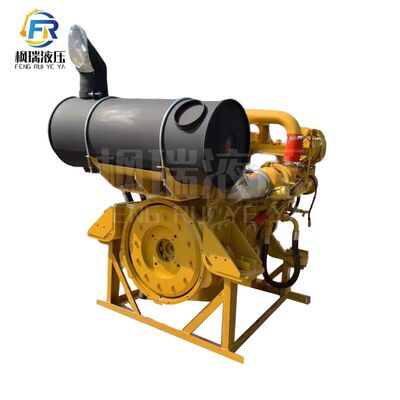

Cat C9 ACERT Excavator Engine 200kW With 8.8L Displacement EPA Tier 3 Emission Standard
| Brand Name | Caterpillar |
|---|---|
| Model Number | C9 ACERT |
Product Details
| Engine Model | Cat C9 ACERT (Part No.252-4430, Excavator Variant For Cat E336D/336D) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged & Air-to-air Aftercooled (ATAAC) Diesel Engine With ADEM A4 Electronic Control Module |
|---|---|---|---|
| Bore × Stroke | 110mm × 127mm (4.33in × 5.00in) | Displacement | 8.8L (8800cc/537 Cu·in) |
| Compression Ratio | 16.5:1 (standard Excavator Variant) | Rated Power | 200kW (268HP) @ 1900rpm (Cat E336D Net Power/SAE J1349), 209kW (280HP) @ 1900rpm (ISO 14396) |
| Maximum Torque | 1160-1250Nm (856-922lb-ft) @ 1400rpm (depending On Power Variant) | Fuel System | HEUI (Hydraulically Actuated Electronically Controlled Unit Injection) Fuel System, Electronic Control With ACERT Technology |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Mechanical/Electric Fan Drive, Forced Water Cooling With Aluminum Radiator + Aftercooler + Closed Crankcase Ventilation |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration, Oil Cooler Included | Oil Capacity | 32L (33.8qts) Including Oil Filter |
| Fuel Consumption | ≤200g/kW·h (at Rated Power, Excellent Fuel Efficiency For Heavy Machinery) | Starter Type | Electric Starter, 24V/9.0kW × 1 (single Starter With Cold Start Aid System, -32°C Cold Start Capability) |
| Alternator | 24V/90A (110A Optional) | Dry Weight | Approx. 890-950kg (depending On Variant And Accessories) |
| Dimensions (L×W×H) | 1850mm × 900mm × 1150mm (engine Only) | Emission Standard | EPA Tier 3, EU Stage IIIA, China Non-road Stage III (DOC Aftertreatment System) |
| Key Features | Robust Cast Iron Engine Block, Replaceable Wet Cylinder Liners, Forged Steel Crankshaft, Single Cylinder Head With 4 Valves Per Cylinder, ACERT Technology For Optimal Performance And Low Emissions, Excellent Low-speed Torque, 15000+ Hours Major Overhaul Pe | Application | Caterpillar E336D/336D/336DL Hydraulic Excavators, 36 Ton Class Construction/mining Excavators, Heavy Equipment |
| Part Number | 252-4430 (engine Assembly For E336D/336D Excavator) | ||
| Highlight | Excavator Engine 200kW,Cat Excavator Engine,Cat C9 ACERT Engine |
||
Product Description
Cat C9 ACERT Engine 252-4430 8.8L 6-Cylinder
High-performance Cat C9 ACERT engine designed specifically for Cat E336D and 336D Excavator models. This 8.8-liter, 6-cylinder engine delivers reliable power and efficiency for demanding construction applications.
Engine Specifications
Engine Model:
Cat C9 ACERT
Part Number:
252-4430
Displacement:
8.8 Liters
Cylinders:
6
Compatible With:
Cat E336D, 336D Excavator
Technology:
ACERT Emissions Technology
