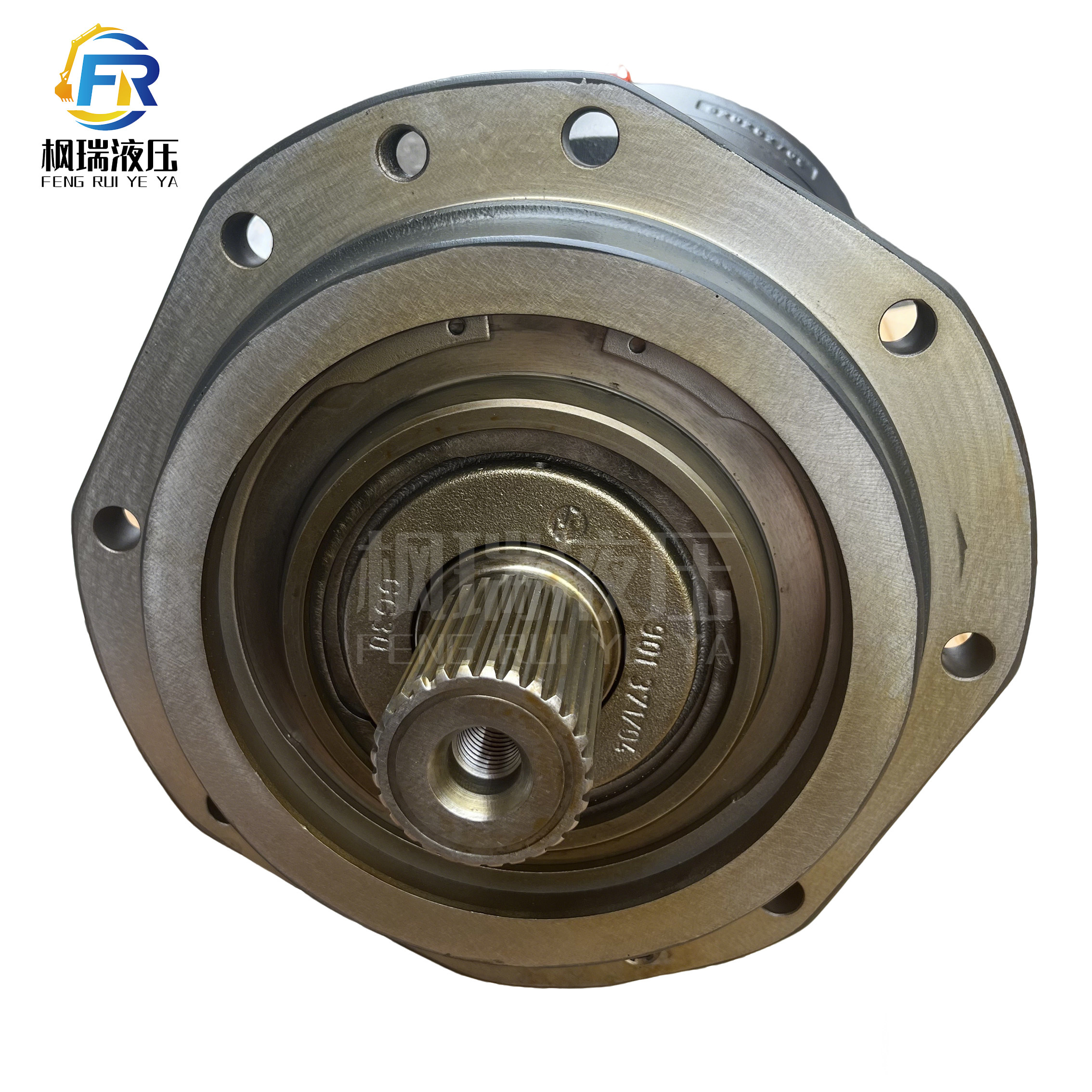

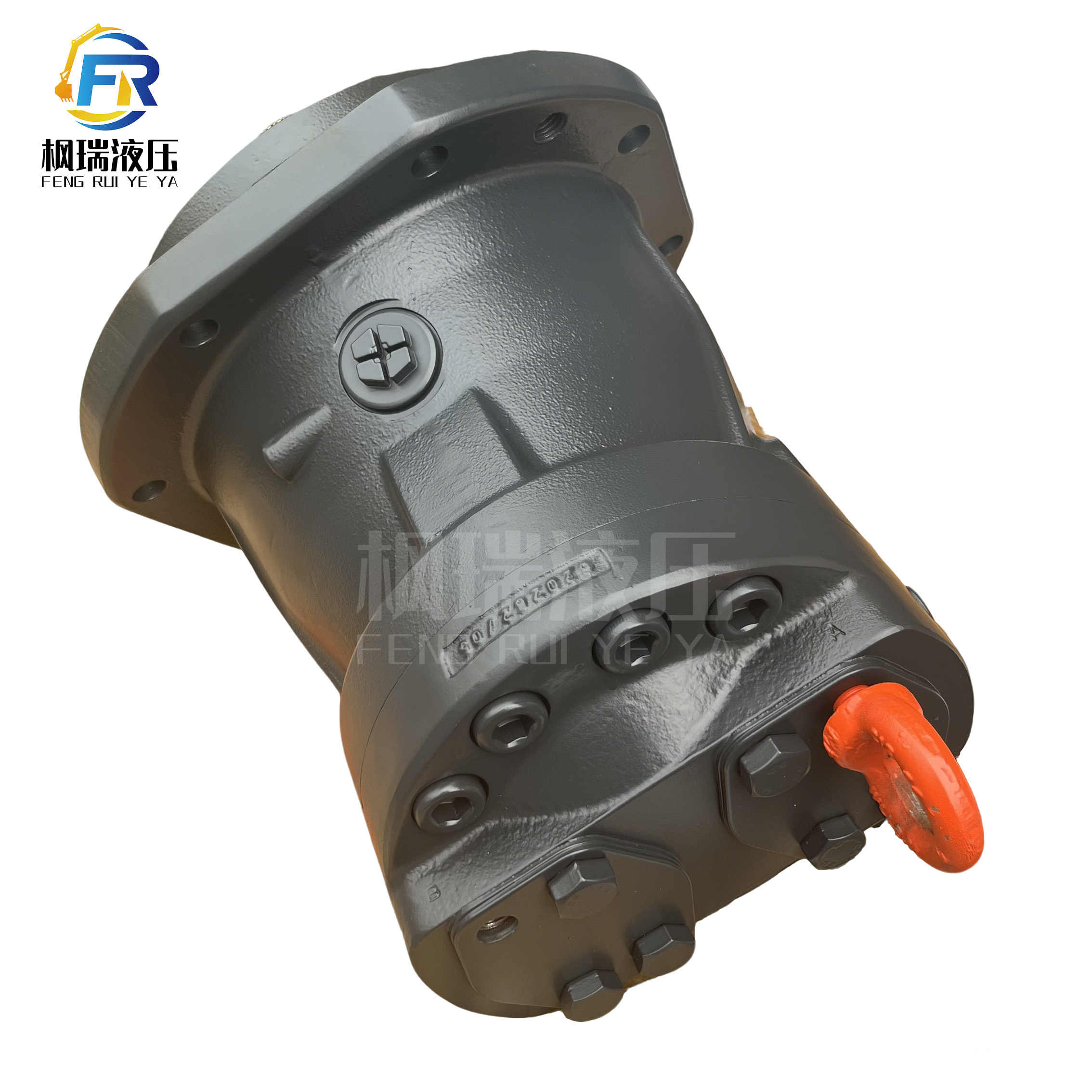

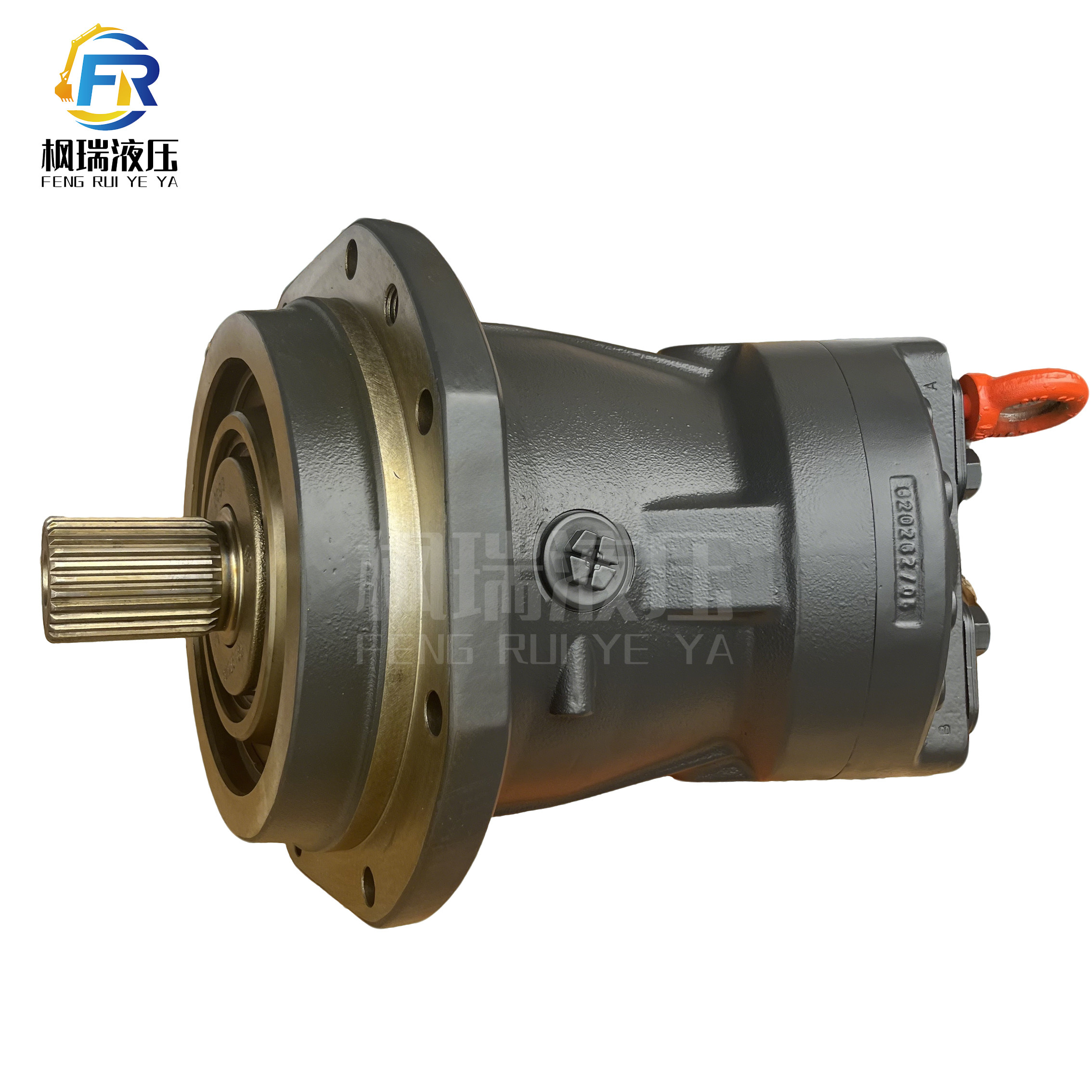

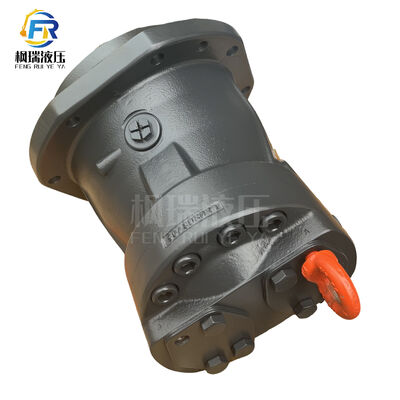

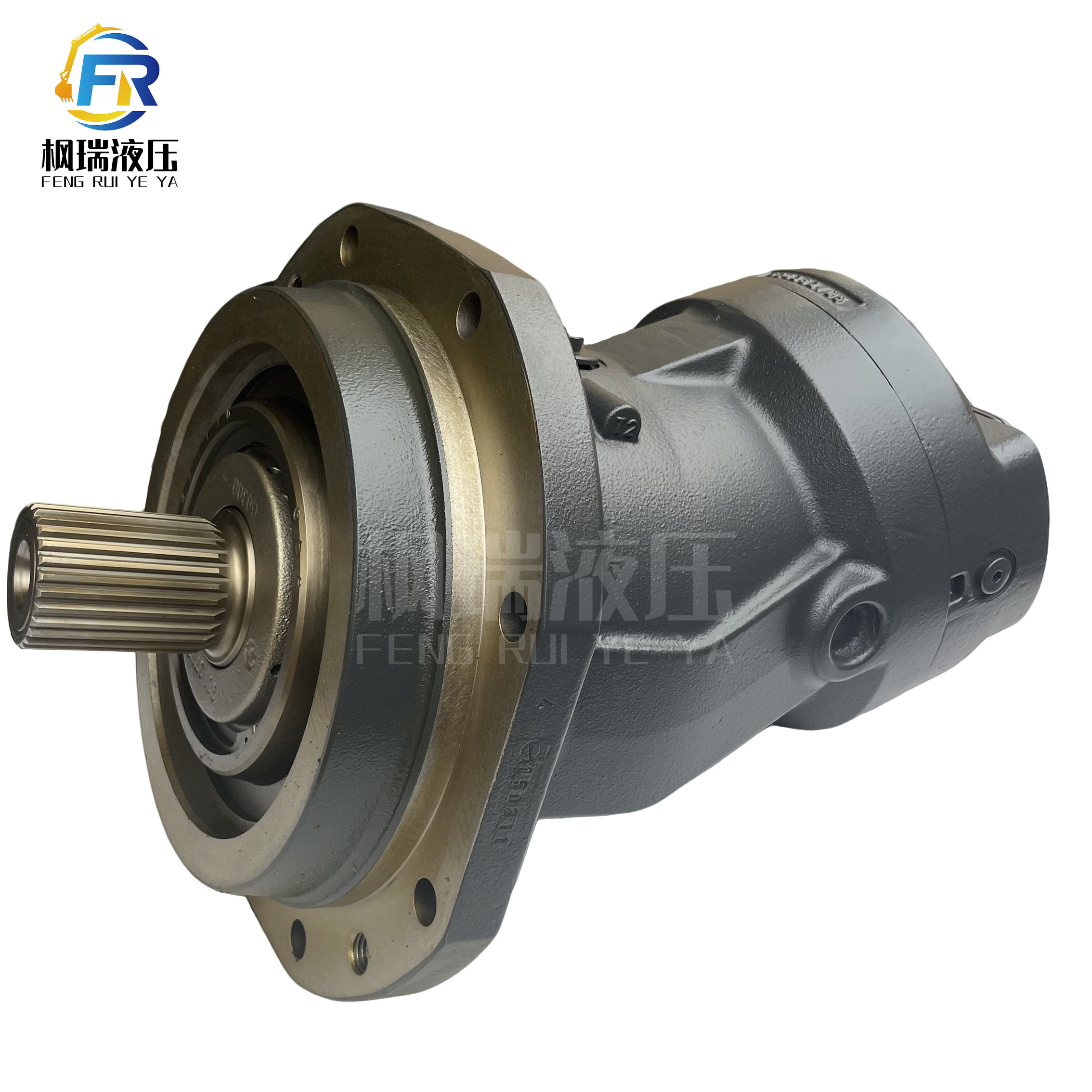

Komatsu PC3000-6 Excavator Swing Motor Assembly 95930840 9593084
| Brand Name | Komatsu |
|---|---|
| Model Number | PC3000-6 |
Product Details
| Features | High Efficiency, Low Noise, Anti-vibration, Leak-proof Design, Long Service Life | Part Number | 95930840 (9593084) |
|---|---|---|---|
| Product Name | Hydraulic Swing Motor Assembly (Slewing Motor + Planetary Gearbox) | Suitable Machine | Komatsu PC3000-6, PC3000-6e, PC4000-6 Large Excavators |
| Motor Type | High Torque Axial Piston Motor (Fixed/Variable Displacement) | Gearbox Type | Heavy-Duty Planetary Gear Reduction System |
| Max Working Pressure | 35 MPa (5075 Psi) | Max Output Torque | 50,000-60,000 Nm (depending On Configuration) |
| Reduction Ratio | 18:1 ~ 22:1 (Optimal For Large Excavator Operation) | Displacement | 800-1000 Cm³/rev (Large Capacity For Heavy Lifting) |
| Rotation | Bi-directional (360° Continuous Rotation) | Material | High-strength Alloy Steel Housing, Forged Steel Gears, Heavy-duty Floating Face Seals |
| Condition | New Aftermarket Replacement Part (ISO9001 Certified) | Weight | Approx. 850-950 Kg |
| Highlight | Excavator Swing Motor Assembly,Komatsu Excavator Swing Motor,95930840 |
||
Product Description
Komatsu PC3000-6 Excavator Swing Motor Assembly
Product Specifications
| Part Name | Suitable Model | Komatsu OEM Part Number |
|---|---|---|
| Swing Motor Assembly | PC3000-6/PC3000-6e/PC4000-6 | 95930840 (9593084) |
| Swing Gearbox (Planetary) | PC3000-6 Series | 94487240, 93656040 |
| Swing Motor Seal Kit | PC3000-6 Series | 95930841, 95930842 |
| Floating Face Seal | PC3000-6 Series | 95930843, 95930844 |
| Drive Shaft | PC3000-6 Series | 95930845, 95930846 |
Compatible Equipment Models
- PC3000-6: Standard large mining excavator (operating weight: ~261,000 kg, engine power: ~1,260 HP)
- PC3000-6e: Enhanced efficiency version with improved hydraulic system
- PC4000-6: Larger mining excavator with compatible swing motor assembly
Important Note: 9593084 is the short version of the full OEM part number 95930840. Both are commonly used in the industry to refer to the same swing motor assembly.
