Yanmar 2TNV70-PFRC 2-Cylinder Water-Cooled Diesel Engine with 10.0-10.5kW Rated Power for Agricultural Machinery
| Brand Name | anmar |
|---|---|
| Model Number | 2TNV70-PFRC |
Product Details
| Engine Model | Yanmar 2TNV70-PFRC | Engine Type | Vertical Inline 2-cylinder, 4-stroke, Water-cooled, Indirect Injection (IDI) Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 70mm × 74mm | Displacement | 0.57L (570cc) |
| Compression Ratio | 23.5:1 | Rated Power | 10.0-10.5kW (13.6-14.3HP) @ 3000-3600rpm |
| Maximum Torque | 33.5Nm @ 2200rpm | Fuel System | Mechanical Injection Pump, Indirect Injection (IDI) |
| Governor Type | Mechanical Governor | Cooling System | Forced Water Cooling |
| Lubrication System | Pressure Lubrication With Oil Pump | Oil Capacity | 2.5L |
| Fuel Tank Capacity | 12-15L (varies By Application) | Weight | 84kg (dry Weight) |
| Dimensions (L×W×H) | 417mm × 410mm × 533mm | Emission Standard | EU Stage II/III, EPA Tier 2 Equivalent |
| Highlight | 2-Cylinder Diesel Engine,Water-Cooled Excavator Engine,10.0-10.5kW Rated Power Yanmar Engine |
||
Product Description

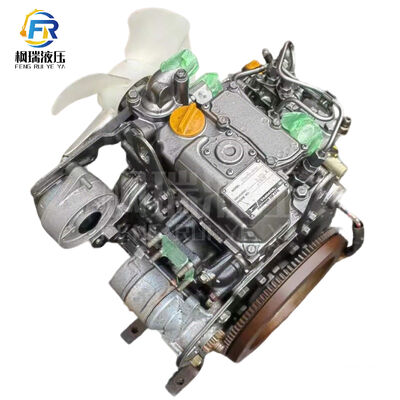

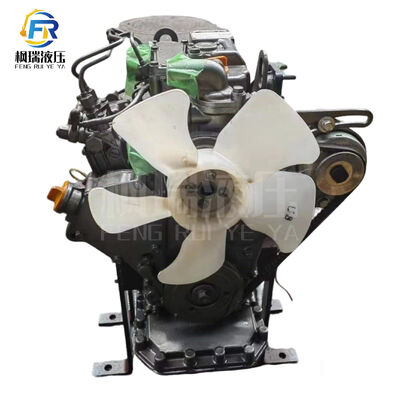

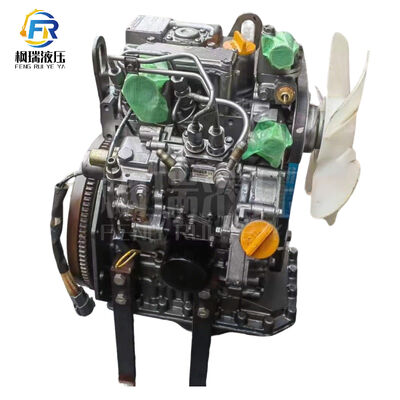

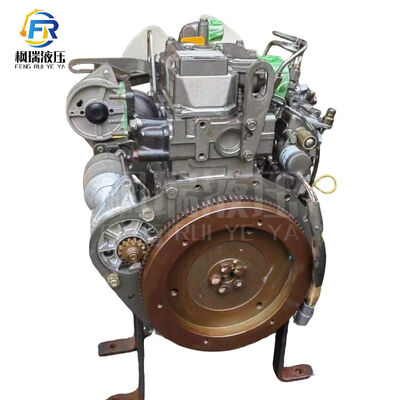

Yanmar 2TNV70-PFRC Diesel Engine
2-Cylinder Water-Cooled Diesel Engine for Agricultural Machinery
The Yanmar 2TNV70-PFRC is a reliable 2-cylinder diesel engine specifically engineered for agricultural applications. Featuring advanced water-cooling technology, this engine delivers optimal performance and durability in demanding farming environments.
Key Features:
- 2-cylinder diesel configuration for balanced power output
- Efficient water-cooling system for optimal temperature control
- Designed specifically for agricultural machinery applications
- Yanmar reliability and proven performance
- Compact design for easy integration into various equipment
Primary Applications: Tractors, harvesters, irrigation systems, and other agricultural machinery requiring reliable diesel power.
