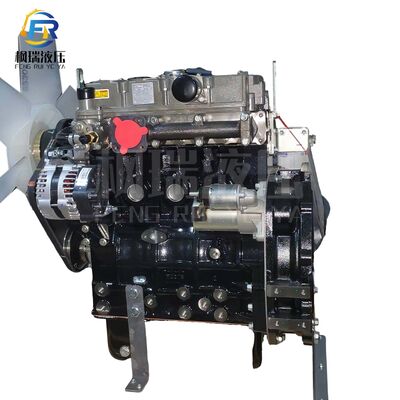

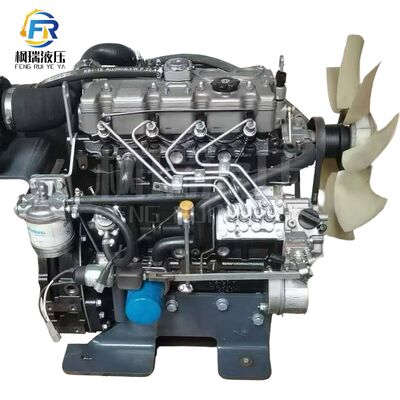

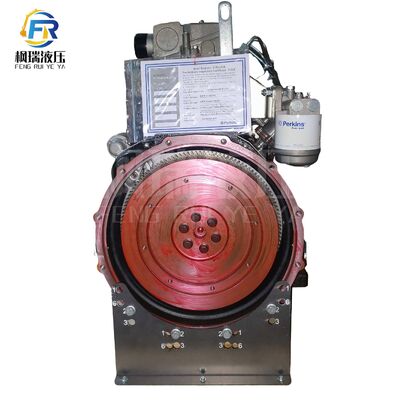

Perkins 404D-22T Turbocharged Diesel Engine 2.2L Displacement 45.5kW Rated Power for Excavator
| Brand Name | Perkins |
|---|---|
| Model Number | 404D-22T |
Product Details
| Engine Model | Perkins 404D-22T | Engine Type | Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged (non-intercooled) Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 87.5mm × 92.0mm | Displacement | 2.2L |
| Compression Ratio | 18.0:1 | Rated Power | 45.5kW (61HP) @ 2800rpm (ISO 3046) |
| Maximum Torque | 180Nm @ 1600-2000rpm | Fuel System | Mechanical Direct Injection, Rotary Fuel Injection Pump |
| Firing Order | 1-3-4-2 | Cooling System | Forced Water Cooling With Thermostat |
| Lubrication System | Pressure Feed With Full-flow Filtration | Oil Capacity | 6.5L (including Filter) |
| Starter Type | Electric Starter, 12V/24V Optional | Alternator | 12V/80A / 24V/40A Optional |
| Dry Weight | Approx. 185kg | Emission Standard | EU Stage II / EPA Tier 2 (off-road Non-road Mobile Machinery) |
| Application | Compact Excavator, Backhoe Loader, Skid Steer Loader, Construction Machinery | ||
| Highlight | Turbocharged Perkins 404D-22T Engine,2.2L Displacement Excavator Engine,45.5kW Rated Power Diesel Engine |
||
Product Description
Perkins 404D-22T Engine Assembly
High-performance 4-cylinder turbocharged diesel engine specifically engineered for excavator applications. This 2.2L Perkins 404D-22T engine assembly delivers reliable power and exceptional durability for demanding construction environments.
Key Features
- 4-cylinder turbocharged diesel configuration
- 2.2L displacement for optimal power-to-weight ratio
- Engineered specifically for excavator applications
- Perkins reliability and proven performance
- Complete engine assembly ready for installation
Technical Specifications
| Engine Model | Perkins 404D-22T |
| Cylinder Configuration | 4-Cylinder |
| Aspiration | Turbocharged |
| Displacement | 2.2L |
| Application | Excavator |
| Assembly Type | Complete Engine Assembly |
This Perkins engine assembly is built to withstand the rigorous demands of excavation work, providing consistent performance and long service life in challenging operating conditions.
