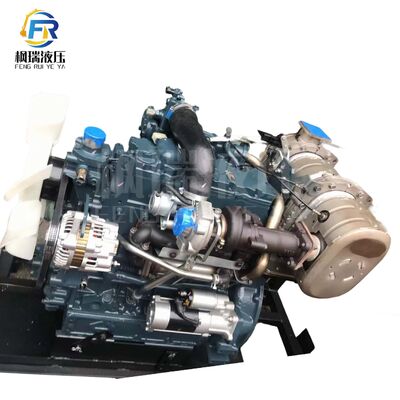

Kubota Excavator Engine V3800-DI-T-E3B 74kW 99HP Turbocharged Intercooled
| Brand Name | Kubota |
|---|---|
| Model Number | V3800 |
Product Details
| Engine Model | Kubota V3800 (V3800-DI-T-E2B/E3B/E4B, V3800-CR-TE5 Variants) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged (with Intercooler Optional), Direct Injection/common Rail Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 100mm × 120mm (3.937in × 4.724in) | Displacement | 3.769L (3769cc/230.0 Cu·in) |
| Compression Ratio | 17.0:1 (standard Variant) | Rated Power | 60kW (81HP) @ 2200rpm To 74kW (99HP) @ 2600rpm (ISO 9249) |
| Maximum Torque | 295-325Nm (217-239lb-ft) @ 1600rpm (depending On Variant) | Fuel System | Mechanical Direct Injection (DI) Or Electronic Common Rail (CR) System |
| Firing Order | 1-3-4-2 | Cooling System | Forced Water Cooling With Thermostat + Optional Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 12L (including Oil Filter) |
| Fuel Consumption | ≤200g/kW·h (at Rated Power, High Fuel Efficiency) | Starter Type | Electric Starter, 24V/3.5kW, With Glow Plug Cold Start System |
| Alternator | 24V/60A (80A Optional) | Dry Weight | Approx. 280-320kg (depending On Variant And Aftertreatment) |
| Dimensions (L×W×H) | 699-745mm × 549mm × 794mm (without Aftertreatment Unit) | Emission Standard | EU Stage II/IIIA/IV, EPA Tier 2/3/4 (depending On Variant) |
| Key Features | Compact Design, High Power-to-weight Ratio, Low Noise/vibration, Excellent Fuel Economy, Easy Maintenance, Cold Start At -25℃, 10000+ Hours Major Overhaul Period | Application | Sany SY95CPro, Sunward SWE90E/SWE100E/SWE90N9, Takeuchi TB180/TB190, Kubota KX080-4/KX085-4 (8-10 Ton Class Mini-medium Excavators) |
| Highlight | V3800-DI-T-E3B,Kubota Excavator Engine Turbocharged,Excavator Engine 99HP |
||
Product Description

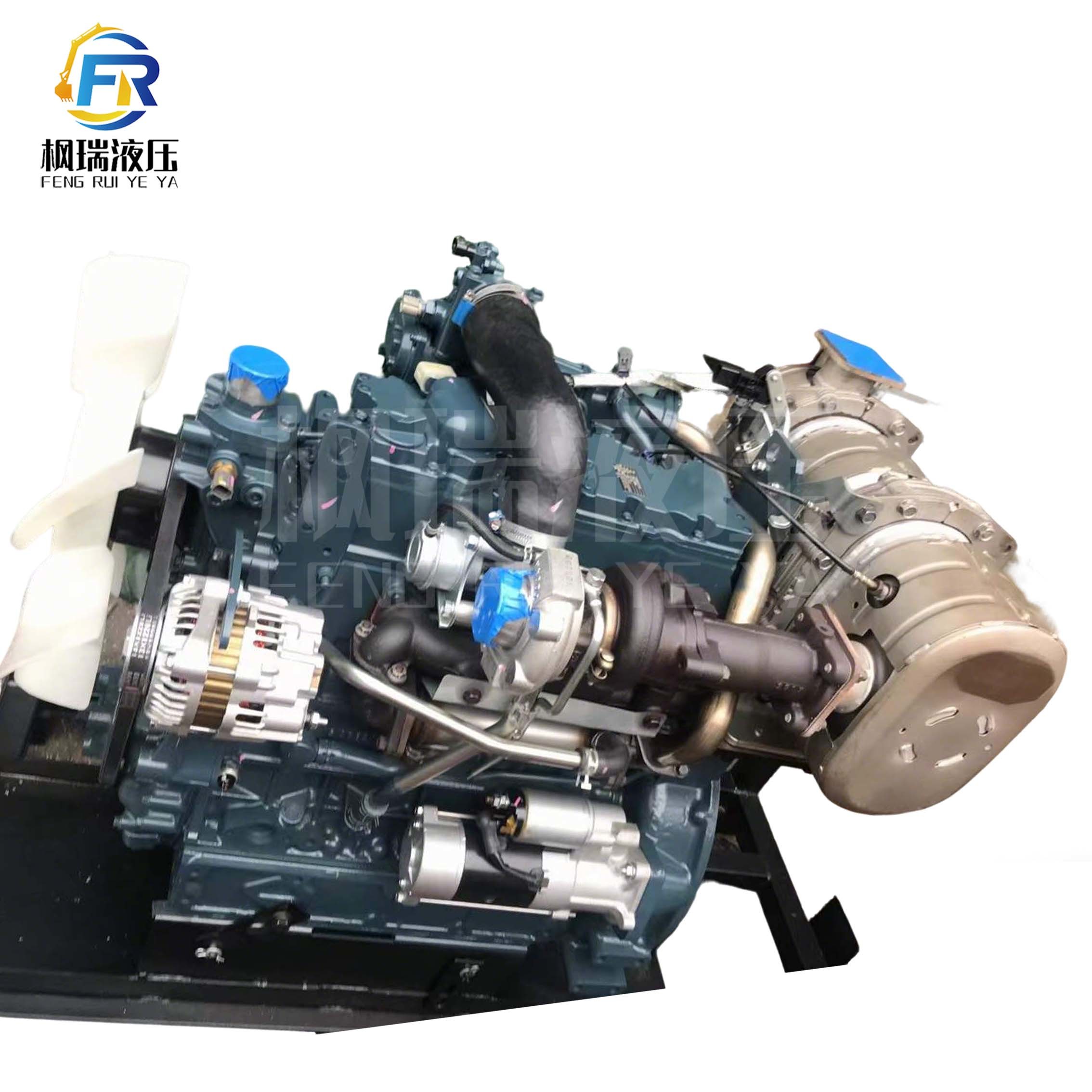

Kubota V3800-DI-T-E3B Engine Assembly
Exact replacement engine assembly specifically designed for the Sany SY95CPro Excavator. This Kubota V3800-DI-T-E3B engine provides reliable performance and seamless integration with your equipment.
Key Features
- Direct replacement for Sany SY95CPro Excavator applications
- Kubota V3800-DI-T-E3B engine model
- Complete engine assembly ready for installation
- Manufactured to exact OEM specifications
- Ensures optimal performance and compatibility
Compatibility & Specifications
| Engine Model | Kubota V3800-DI-T-E3B |
| Compatible Equipment | Sany SY95CPro Excavator |
| Assembly Type | Complete Engine Assembly |
| Fitment | Exact OEM Replacement |
This engine assembly is designed as a direct replacement solution, ensuring proper fit and function for your Sany SY95CPro Excavator without requiring modifications.
