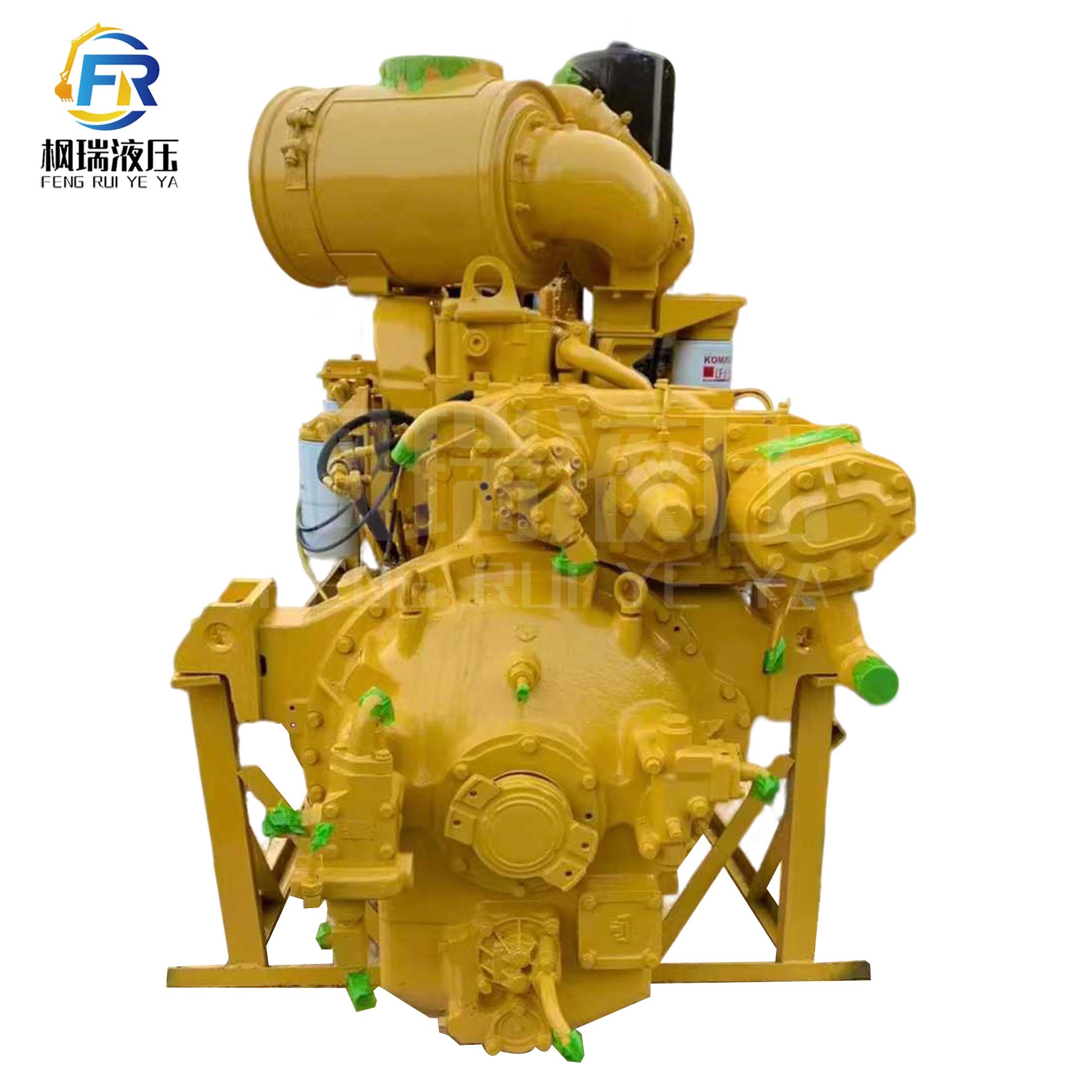

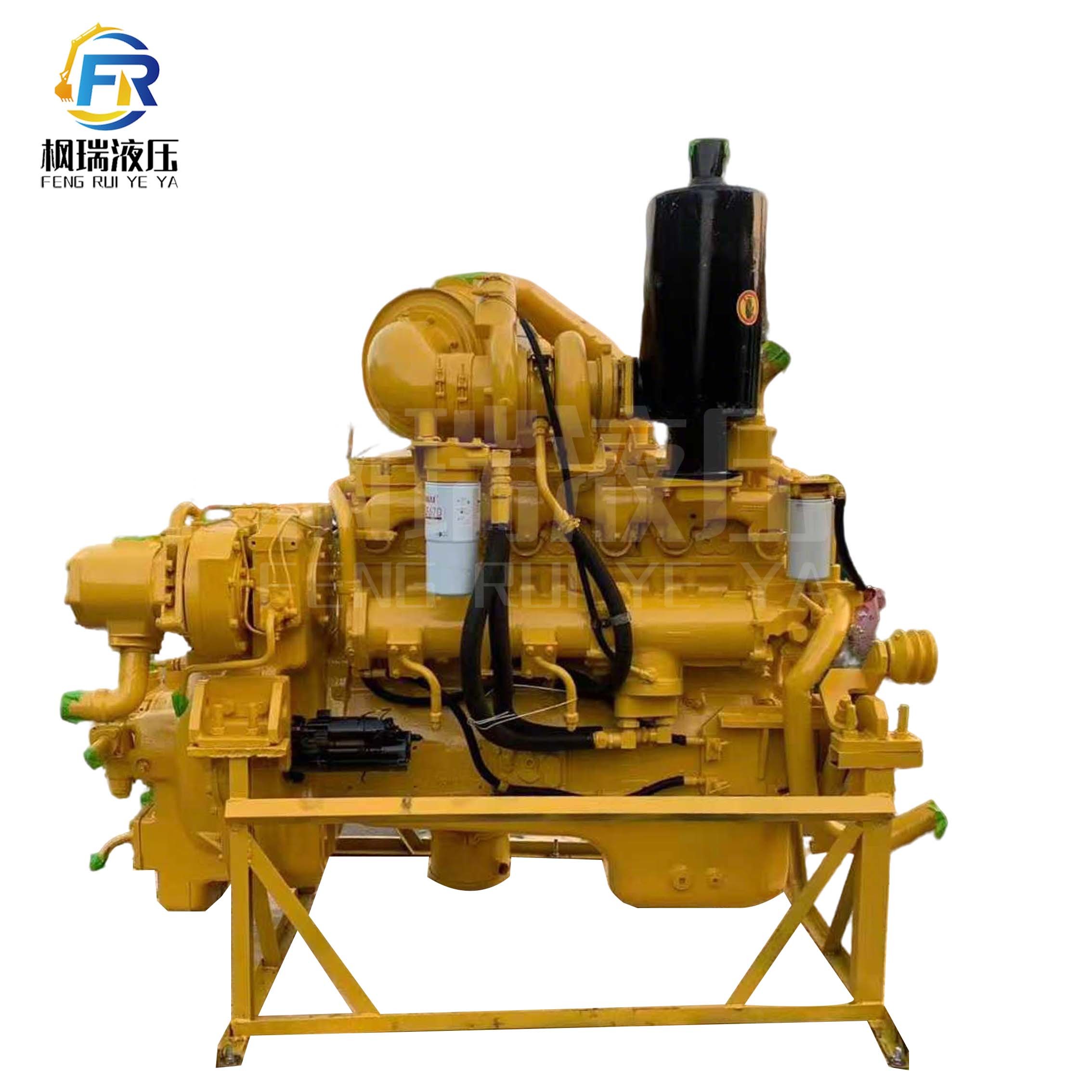

NT855 Diesel Engine 162kW 220HP Turbocharged Water Cooled For Shantui SD22
| Brand Name | Cummins |
|---|---|
| Model Number | NT855 |
Product Details
| Engine Model | Cummins NT855 (NT855-C280S10, NT855-C250, NTA855 Variants) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 139.7mm × 152.4mm (5.5in × 6.0in) | Displacement | 14.01L (14010cc/855 Cu·in) |
| Compression Ratio | 15.0:1 (standard Variant) | Rated Power | 162-175kW (220-235HP) @ 1800rpm (ISO 3046), 220HP (162kW) @ 1800rpm (gross Power) |
| Maximum Torque | 1078Nm (795.1lb-ft) @ 1250rpm (depending On Variant) | Fuel System | Cummins PT™ (Pressure-Time) Self-adjusting Mechanical Fuel System |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Forced Water Cooling With Thermostat + Aluminum Radiator + Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 38L (40.2qts) Including Oil Filter |
| Fuel Consumption | ≤205g/kW·h (at Rated Power, High Fuel Efficiency) | Starter Type | Electric Starter, 24V/11kW, With Glow Plug Cold Start System |
| Alternator | 24V/100A (120A Optional) | Dry Weight | Approx. 1270-1320kg (depending On Variant And Aftertreatment) |
| Dimensions (L×W×H) | 1850mm × 950mm × 1280mm (without Aftertreatment Unit) | Emission Standard | EU Stage II, EPA Tier 2, China Stage I (depending On Variant) |
| Key Features | Robust Construction, Massive Torque Output, Reliable PT Fuel System, Low Oil Consumption, Easy Maintenance, Cold Start At -25℃, 20000+ Hours Major Overhaul Period | Application | Shantui SD22/SD32 Bulldozer, Komatsu PC650/PC400, Hitachi EX700, 50-65 Ton Class Large Excavators, Heavy Construction Machinery |
| Highlight | 162kW/220HP Cummins NT855 Diesel Engine,Turbocharged Excavator Engine,Water Cooled Diesel Engine |
||
Product Description
High Performance Cummins NT855-C280S10 Diesel Engine
Power Output: 162kW / 220HP @ 1800rpm
The Cummins NT855-C280S10 is a high-performance diesel engine specifically engineered for the Shantui SD22 bulldozer. This robust powerplant delivers reliable performance and exceptional durability in demanding construction and industrial applications.
Compatible Equipment: Shantui SD22 Bulldozer
Key Features
- High-performance Cummins NT855 series engine
- Optimized for heavy-duty construction equipment
- Reliable power delivery at 1800 RPM
- Engineered specifically for Shantui SD22 compatibility
- Durable construction for extended service life
- Efficient fuel consumption and emissions performance
Technical Specifications
| Specification | Value |
|---|---|
| Engine Model | Cummins NT855-C280S10 |
| Power Output | 162kW / 220HP |
| Rated RPM | 1800 RPM |
| Application | Shantui SD22 Bulldozer |
| Engine Type | Diesel |
