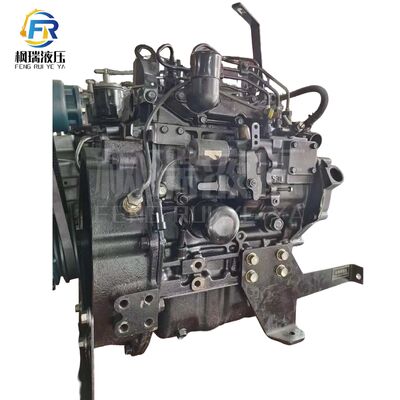

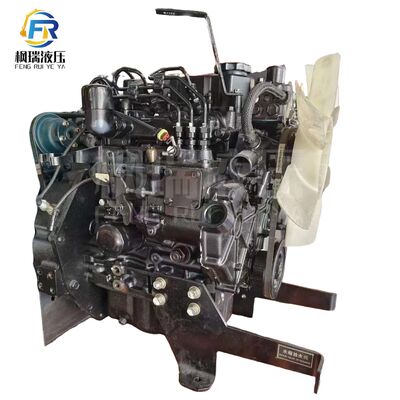

Mitsubishi S3L2 3-Cylinder Water-Cooled Diesel Engine 1.3L Displacement for 2-3 Ton Mini Excavator
| Brand Name | Mitsubishi |
|---|---|
| Model Number | S3L2 |
Product Details
| Engine Model | Mitsubishi S3L2 (S3L2-Z564SP Variable Speed, S3L2-Y262KL Industrial Variants Available) | Engine Type | Vertical, Inline 3-cylinder, 4-stroke, Water-cooled, Naturally Aspirated Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 78mm × 92mm (3.07in × 3.62in) | Displacement | 1.318L (1318cc/80.53 Cu·in) |
| Compression Ratio | 22.0:1 (standard Naturally Aspirated Variant) | Rated Power | 18.5kW (25HP) @ 2400rpm (base Variant), 21.2kW (28.8HP) @ 2800rpm (max Variant), 19.1kW (25.6HP) @ 2500rpm (Caterpillar 302.5C) |
| Maximum Torque | 76.2Nm (56.2lb-ft) @ 2000rpm (naturally Aspirated), 82Nm (60.5lb-ft) @ 2200rpm (high Torque Variant) | Fuel System | Mechanical Indirect Injection (swirl Chamber Type/IDI) With High-pressure Fuel Pump |
| Firing Order | 1-3-2 | Cooling System | Forced Water Cooling With Thermostat + Aluminum Radiator + Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Spin-on Cartridge Filtration + Bypass Filtration | Oil Capacity | 4.2L (4.45qts) Including Oil Filter |
| Fuel Consumption | ≤250g/kW·h (at Rated Power, Excellent Fuel Economy For Compact Machinery) | Starter Type | Electric Starter, 12V/3.5kW, With Glow Plug Cold Start System |
| Alternator | 12V/40A (55A Optional) | Dry Weight | Approx. 135-145kg (depending On Variant And Accessories) |
| Dimensions (L×W×H) | 620mm × 450mm × 580mm (engine Only) | Emission Standard | EU Stage II, EPA Tier 2, China Non-road Stage I (depending On Variant) |
| Key Features | Ultra-compact Design, Best-in-class Sound Attenuation, Reliable Performance, Easy Maintenance, Cold Start At -15℃, 12000+ Hours Major Overhaul Period, Ideal For Mini Excavator And Small Material Handling Applications | Application | Caterpillar 302.5C, Kubota U15, 2-3 Ton Class Mini Excavators, 1-2 Ton Class Diesel Forklifts, Small Agricultural Machinery, Compact Industrial Equipment |
| Highlight | 3-Cylinder Excavator Engine,Water-Cooled Diesel Engine,1.3L Displacement Mitsubishi Engine |
||
Product Description
Mitsubishi S3L2 Engine Assembly
High-performance 3-cylinder water-cooled diesel engine assembly designed specifically for 2-3 ton mini excavators. This 1.3L Mitsubishi S3L2 engine delivers reliable power and exceptional durability for demanding construction applications.
Engine Model:
Mitsubishi S3L2
Cylinders:
3-Cylinder
Cooling System:
Water-Cooled
Displacement:
1.3L
Application:
2-3 Ton Mini Excavators
