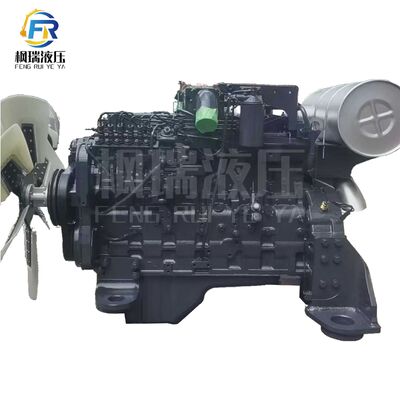

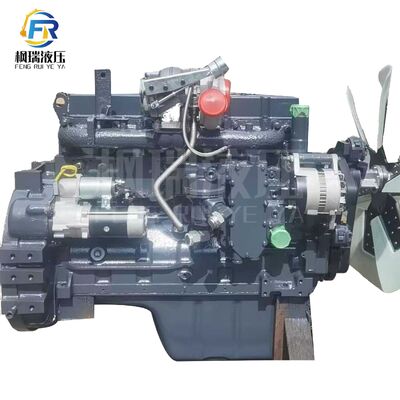

Komatsu SAA6D114E 6-Cylinder Water-Cooled Diesel Engine 8.27L Displacement 180kW Rated Power for PC360-7 Excavator
| Brand Name | Komatsu |
|---|---|
| Model Number | SAA6D114E (6D114) |
Product Details
| Engine Model | Komatsu SAA6D114E (6D114) (SAA6D114E-2, SAA6D114E-3 Variants Available For Different Applications) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged & Air-to-air Aftercooled Diesel Engine With Mechanical Control |
|---|---|---|---|
| Bore × Stroke | 114mm × 135mm (4.49in × 5.31in) | Displacement | 8.27L (8270cc/504.7 Cu·in) |
| Compression Ratio | 17.0:1 (standard Industrial Variant) | Rated Power | 180kW (242HP) @ 1900rpm (PC360-7/PC300-7 Net Power/SAE J1349), 186kW (249HP) @ 1900rpm (gross Power/SAE J1995) |
| Maximum Torque | 1127Nm (831lb-ft) @ 1400rpm (PC360-7 Variant) | Fuel System | Heavy-Duty Mechanically Controlled Direct Injection (MCDI) Fuel System, High-pressure Pump With Mechanical Governor |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Mechanical Fan Drive, Forced Water Cooling With Aluminum Radiator + Aftercooler + Closed Crankcase Ventilation |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration, Oil Cooler Included | Oil Capacity | 42L (44.4qts) Including Oil Filter |
| Fuel Consumption | ≤215g/kW·h (at Rated Power, Excellent Fuel Economy For Medium Machinery) | Starter Type | Electric Starter, 24V/7.5kW × 1 (single Starter With Cold Start Aid System), Optional Dual Starters Available |
| Alternator | 24V/50A (60A/80A Optional) | Dry Weight | Approx. 1600-1750kg (depending On Variant And Accessories) |
| Dimensions (L×W×H) | 1780mm × 1020mm × 1250mm (engine Only) | Emission Standard | EU Stage II, EPA Tier 2, China Non-road Stage II (reliable Performance With Low Operating Costs) |
| Key Features | Robust Cast Iron Engine Block, Single Cylinder Head With 4 Valves Per Cylinder, Mechanical Fuel Injection System For Precise Control, Excellent Low-speed Torque, 15000+ Hours Major Overhaul Period, Ideal For Medium Excavator And Construction Applications | Application | Komatsu PC300-7/PC300LC-7/PC360-7/PC360LC-7/PC350-7 Excavators, 30-36 Ton Class Mining Excavators, Heavy Construction Equipment |
| Highlight | 6-Cylinder Water-Cooled Excavator Engine,8.27L Displacement Diesel Engine,180kW Rated Power Komatsu Engine |
||
Product Description
Komatsu SAA6D114E Engine Assembly
High-performance 6-cylinder water-cooled diesel engine designed specifically for heavy-duty industrial applications. This 8.27L engine assembly delivers reliable power and exceptional durability for demanding construction environments.
Key Features
- 6-cylinder configuration for balanced power delivery
- Water-cooled system ensuring optimal operating temperatures
- 8.27-liter displacement providing substantial torque and horsepower
- Engineered for heavy-duty performance and long service life
- Direct replacement compatibility with original specifications
Technical Specifications
| Model | SAA6D114E (6D114) |
|---|---|
| Cylinders | 6 |
| Cooling System | Water-Cooled |
| Displacement | 8.27L |
| Engine Type | Diesel |
Compatible Equipment
Specifically engineered for the 36-ton Komatsu PC360-7 Excavator. This engine assembly ensures perfect fitment and performance matching for your heavy equipment needs.
