Komatsu S6D95L Engine Assembly 6-Cylinder Water-Cooled 4.89L Displacement 95kW Rated Power for PC200-5 Excavator
| Brand Name | Komatsu |
|---|---|
| Model Number | S6D95L (6D95) |
Product Details
| Engine Model | Komatsu S6D95L (6D95) (S6D95L-1, S6D95L-2 Variants Available For Different Applications) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine With Mechanical Control |
|---|---|---|---|
| Bore × Stroke | 95mm × 115mm (3.74in × 4.53in) | Displacement | 4.89L (4890cc/298 Cu·in) |
| Compression Ratio | 17.5:1 (standard Industrial Variant) | Rated Power | 95kW (127HP) @ 2200rpm (PC200-5 Net Power/SAE J1349), 101kW (135HP) @ 2200rpm (gross Power/SAE J1995) |
| Maximum Torque | 454Nm (335lb-ft) @ 1600rpm (PC200-5 Variant) | Fuel System | Heavy-Duty Mechanically Controlled Direct Injection (MCDI) Fuel System, In-line High-pressure Pump With Mechanical Governor |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Mechanical Fan Drive, Forced Water Cooling With Copper Radiator + Closed Crankcase Ventilation |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration, Oil Cooler Included | Oil Capacity | 22L (23.2qts) Including Oil Filter |
| Fuel Consumption | ≤220g/kW·h (at Rated Power, Reliable Fuel Economy For Medium Machinery) | Starter Type | Electric Starter, 24V/5.5kW × 1 (single Starter With Cold Start Aid System) |
| Alternator | 24V/40A (50A Optional) | Dry Weight | Approx. 850-950kg (depending On Variant And Accessories) |
| Dimensions (L×W×H) | 1520mm × 880mm × 1050mm (engine Only) | Emission Standard | Pre-EPA Tier 1, Pre-EU Stage I (proven Reliability With Simple Mechanical Design) |
| Key Features | Robust Cast Iron Engine Block, Single Cylinder Head With 2 Valves Per Cylinder, Mechanical Fuel Injection System For Easy Maintenance, Excellent Low-speed Torque, 12000+ Hours Major Overhaul Period, Ideal For Medium Excavator And Construction Applications | Application | Komatsu PC200-5/PC200-5LC/PC120-5/PC120-5LC Excavators, 20 Ton Class Construction Excavators, Heavy Equipment, Loaders, Bulldozers |
| Highlight | 6-Cylinder Water-Cooled Komatsu S6D95L Engine,4.89L Displacement Excavator Engine,95kW Rated Power 6D95 Engine Assembly |
||
Product Description

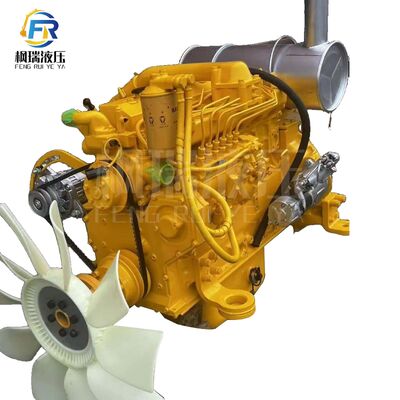

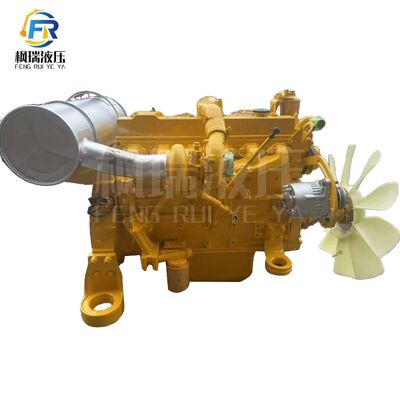

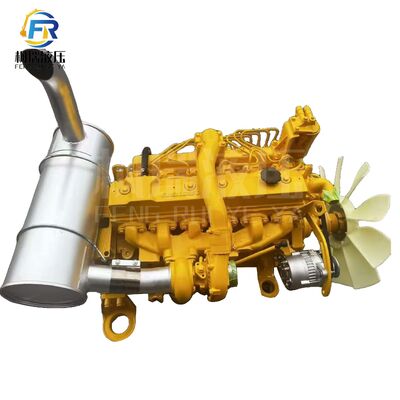

Komatsu S6D95L (6D95) Engine Assembly
Product Overview
Complete Komatsu S6D95L (6D95) engine assembly designed specifically for 20-ton PC200-5 excavators. This industrial-grade power unit delivers reliable performance for heavy-duty construction and excavation applications.
Key Features
- 6-cylinder water-cooled diesel engine configuration
- 4.89L displacement for optimal power output
- Direct replacement for Komatsu PC200-5 excavators
- Industrial-grade construction for heavy-duty applications
- Precision engineering matching OEM specifications
Technical Specifications
| Engine Model | S6D95L (6D95) |
| Cylinder Configuration | 6-Cylinder In-Line |
| Cooling System | Water-Cooled |
| Displacement | 4.89 Liters |
| Compatible Equipment | 20-Ton PC200-5 Excavator |
Application & Compatibility
This engine assembly is engineered as a direct replacement unit for Komatsu PC200-5 excavators, ensuring seamless integration and maintaining original equipment performance standards.
