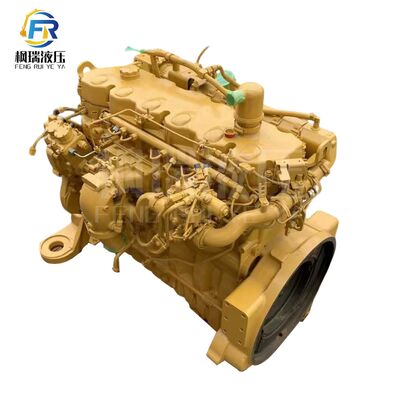

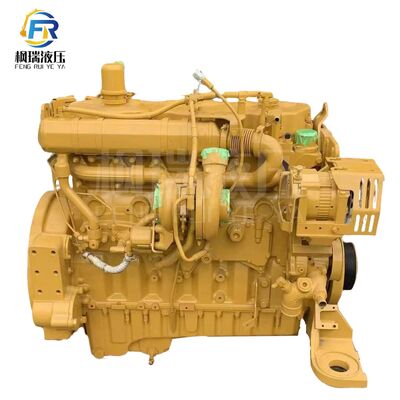

Cat C9.3 ACERT Excavator Engine 9.3L 6 Cylinder For Cat E336E E336F 336E 336F
| Brand Name | Cat |
|---|---|
| Model Number | C9.3 ACERT |
Product Details
| Engine Model | Cat C9.3 ACERT (excavator Variant For Cat E336E/E336F/336E/336F) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged & Air-to-air Aftercooled (ATAAC) Diesel Engine With ADEM A5 Electronic Control Module |
|---|---|---|---|
| Bore × Stroke | 115mm × 149mm (4.53in × 5.87in) | Displacement | 9.3L (9300cc/568 Cu·in) |
| Compression Ratio | 17.5:1 (standard Excavator Variant) | Rated Power | 224kW (300HP) @ 1800rpm (Cat 336E Net Power/SAE J1349), 298kW (400HP) @ 1800rpm (high Power Variant) |
| Maximum Torque | 1680-1950Nm (1240-1438lb-ft) @ 1400rpm (depending On Power Variant) | Fuel System | High Pressure Common Rail (HPCR) Fuel System, Electronic Control With Advanced ACERT Technology |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Electric Fan Drive, Forced Water Cooling With Aluminum Radiator + Aftercooler + Closed Crankcase Ventilation (CCV) |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration, Dual Oil Coolers Included | Oil Capacity | 40L (42.3qts) Including Oil Filter |
| Fuel Consumption | ≤180g/kW·h (at Rated Power, Excellent Fuel Efficiency For Tier 4 Final Engine) | Starter Type | Electric Starter, 24V/11.0kW × 1 (single Starter With Cold Start Aid System, -32°C Cold Start Capability) |
| Alternator | 24V/120A (150A Optional) | Dry Weight | Approx. 980-1050kg (depending On Variant And Emissions Package) |
| Dimensions (L×W×H) | 1950mm × 950mm × 1200mm (engine Only) | Emission Standard | EPA Tier 4 Final, EU Stage IV (E336F Variant With DPF+SCR+DEF System), EPA Tier 4 Interim/Stage IIIB (E336E Variant With DPF) |
| Key Features | Robust Cast Iron Engine Block, Replaceable Wet Cylinder Liners, Forged Steel Crankshaft, Single Cylinder Head With 4 Valves Per Cylinder, ACERT Technology For Optimal Performance And Low Emissions, Excellent Low-speed Torque, 18000+ Hours Major Overhaul Pe | Application | Caterpillar E336E/E336F/336E/336F/336EL/336FL Hydraulic Excavators, 36 Ton Class Construction/mining Excavators, Heavy Equipment |
| Common Part Numbers | 456-3493 (fuel Injector), 338-1149 (water Pump), 339-5904 (oil Cooler), 398-0877 (coolant Tank) | ||
| Highlight | Excavator Engine 9.3L,E336E Excavator Engine,Cat C9.3 Engine |
||
Product Description
Cat C9.3 ACERT Engine
The Cat C9.3 ACERT Engine is a high-performance 9.3L 6-cylinder diesel engine designed specifically for heavy-duty industrial applications. This advanced powerplant delivers reliable performance and efficiency for demanding excavator operations.
Engine Model: C9.3 ACERT
Displacement: 9.3 Liters
Cylinder Configuration: 6-Cylinder
Compatible Models: Cat E336E, E336F, 336E, 336F Excavator
Technology: ACERT Emission System
