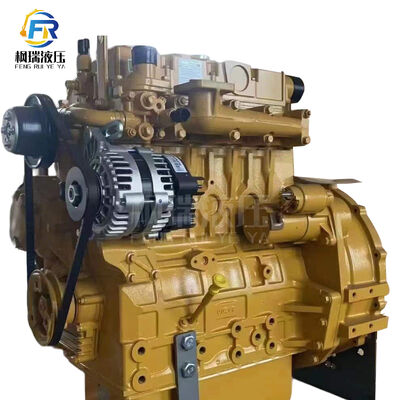

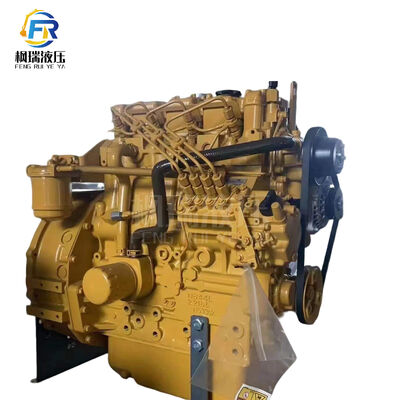

Cat C2.2 DI Turbo Excavator Engine 2.2L Displacement 31kW EPA Tier 4 Final Engine
| Brand Name | Cat |
|---|---|
| Model Number | C2.2 DI Turbo |
Product Details
| Engine Model | Cat C2.2 DI Turbo (excavator Variant For Cat 305.5 Series, C2.2-M-DI-ET04 Specific Version) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Direct Injection (DI) Diesel Engine With Electronic Control |
|---|---|---|---|
| Bore × Stroke | 84mm × 100mm (3.31in × 3.94in) | Displacement | 2.2L (2216cc/135.2 Cu·in) |
| Compression Ratio | 18.5:1 (standard Excavator Variant) | Rated Power | 31kW (41.6HP) @ 2400rpm (net Power/ISO 9249/SAE J1349), 34.1kW (45.7HP) @ 2400rpm (gross Power/ISO 14396) |
| Maximum Torque | 190-210Nm (140-155lb-ft) @ 1600rpm (depending On Application Calibration) | Fuel System | Electronic Direct Injection System (EDI) With High-pressure Fuel Pump |
| Firing Order | 1-3-4-2 | Cooling System | Mechanical/Electric Fan Drive, Forced Water Cooling With Aluminum Radiator + Closed Crankcase Ventilation (CCV) + Diesel Oxidation Catalyst (DOC) |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration | Oil Capacity | 8.0L (8.5qts) Including Oil Filter |
| Fuel Consumption | ≤205g/kW·h (at Rated Power, Excellent Fuel Efficiency For 5.5 Ton Mini Excavator) | Starter Type | Electric Starter, 24V/5.0kW × 1 (single Starter With Cold Start Aid System, -20°C Cold Start Capability) |
| Alternator | 24V/60A (70A Optional) | Dry Weight | Approx. 250-280kg (depending On Variant And Emissions Package) |
| Dimensions (L×W×H) | 1020mm × 600mm × 800mm (engine Only) | Emission Standard | EPA Tier 4 Final (North America), EU Stage IIIA (global Markets), With DPF/DOC For Tier 4 Final Variants |
| Key Features | Robust Cast Iron Engine Block, Replaceable Wet Cylinder Liners, Forged Steel Crankshaft, Single Cylinder Head With 4 Valves Per Cylinder, Proven Reliability In Compact Equipment Applications, 8000+ Hours Major Overhaul Period, Specifically Designed For 5-5 | Application | Caterpillar 305.5, 305.5E, 305.5E2, 305.5E2 CR (zero Tail Swing) Hydraulic Excavators, 5-5.5 Ton Class Construction/landscaping/utilities Mini Excavators |
| Common Part Numbers | 457-1445 (engine Assembly), 450-3207 (engine Assembly), 426-3438 (cylinder Head), 320-3068 (fuel Injector), 320-3070 (water Pump) | ||
| Highlight | Cat C2.2 DI Excavator Engine,Excavator Engine 31kW,EPA Tier 4 Final Engine |
||
Product Description
Cat C2.2 DI Turbo Engine 2.2L 4-Cylinder For Cat 305.5 305.5E 305.5E2 Mini Excavator 457-1445
Product Overview
The Cat C2.2 DI Turbo Engine is a high-performance 2.2-liter 4-cylinder diesel engine designed specifically for Cat mini excavators. This direct injection turbocharged engine delivers reliable power and efficiency for demanding construction applications.
Engine Specifications
Engine Model:
Cat C2.2 DI Turbo
Displacement:
2.2 Liters
Cylinders:
4-Cylinder
Fuel System:
Direct Injection with Turbocharger
Part Number:
457-1445
Compatible Equipment
- Cat 305.5 Mini Excavator
- Cat 305.5E Mini Excavator
- Cat 305.5E2 Mini Excavator
