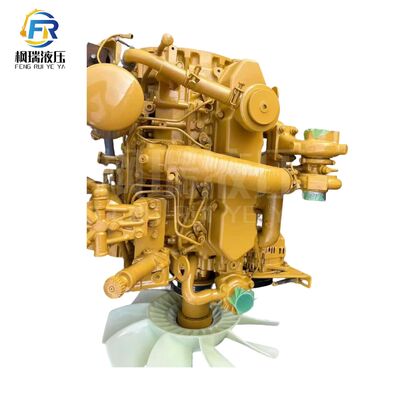

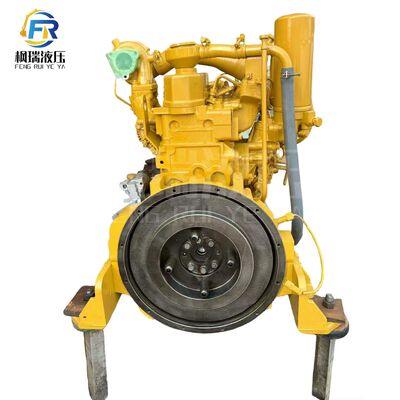

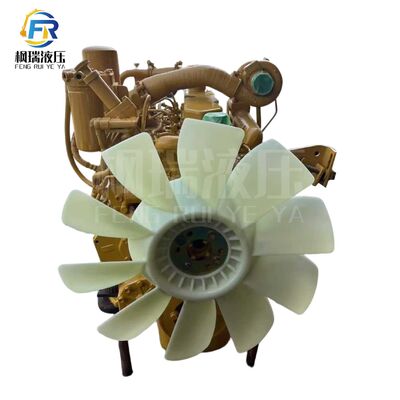

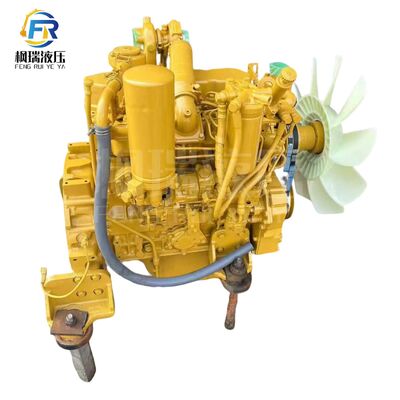

Cat 3064T Turbocharged Diesel Engine 4.2L Displacement 67-70kW Rated Power for Cat E312C Excavator
| Brand Name | Cat |
|---|---|
| Model Number | 3064/3064T |
Product Details
| Engine Model | Cat 3064/3064T (excavator-specific Variant, 3000 Series Premium Electronic Model) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged (T), Direct Fuel Injection (DFI) Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 102mm × 130mm (4.02in × 5.12in) | Displacement | 4.2L (4244cc/259 Cu·in) |
| Compression Ratio | 17.0:1 (standard 3064/3064T Excavator Variant) | Rated Power | 67-70kW (90-94HP) @ 1900rpm (net Power/ISO 9249/SAE J1349, Depending On Specific Model And Application) |
| Maximum Torque | 380-400Nm (280-295lb-ft) @ 1400-1600rpm (optimized For Light-to-medium Digging And Lifting Performance) | Fuel System | Direct Fuel Injection (DFI) System With High-pressure Fuel Injection For Reliable Combustion And Durability |
| Firing Order | 1-3-4-2 | Cooling System | Mechanical Fan Drive, Forced Water Cooling With Aluminum Radiator + Closed Crankcase Ventilation (CCV) + Diesel Oxidation Catalyst (DOC) For Tier 2 Variants |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration | Oil Capacity | 12.0L (12.7qts) Including Oil Filter |
| Fuel Consumption | ≤205g/kW·h (at Rated Power, Excellent Fuel Efficiency For 12-15 Ton Medium Excavator) | Starter Type | Electric Starter, 24V/4.5kW × 1 (single Starter With Cold Start Aid System, -15°C Cold Start Capability) |
| Alternator | 24V/60A (80A Optional) | Dry Weight | Approx. 550-600kg (depending On Variant And Emissions Package) |
| Dimensions (L×W×H) | 1280mm × 750mm × 880mm (engine Only) | Emission Standard | EPA Tier 2/EU Stage II (97/68/EC), Designed For Reliable Performance In Global Markets |
| Key Features | Robust Cast Iron Engine Block, Replaceable Wet Cylinder Liners, Forged Steel Crankshaft, Single Cylinder Head With 4 Valves Per Cylinder, Proven Reliability In Light-to-medium-duty Applications, 6000+ Hours Major Overhaul Period, Specifically Designed For | Application | Cat E312C/312C L/311C/312B/312B L, Mitsubishi S4K-equipped CAT Excavators, 12-15 Ton Class Construction/landscaping/utilities Medium Excavators |
| Common Part Numbers | 5I7800/5I-7800 (cylinder Head), 1932749/193-2749 (fuel Injector), 6LK0001 (engine Assembly), 1R-0739 (oil Filter), 178-6633 (water Pump) | ||
| Highlight | Turbocharged Excavator Engine,4.2L Displacement Diesel Engine,70kW CAT 3064T Engine |
||
Product Description
Cat 3064T Turbocharged Engine
High-performance 4.2L 4-cylinder turbocharged diesel engine designed for heavy-duty industrial applications.
Engine Model:Cat 3064T
Displacement: 4.2 Liters
Cylinders: 4-Cylinder
Configuration: Turbocharged
Part Number: 5I7800
Compatible Equipment:
Specifically engineered for Cat E312C Excavator applications
