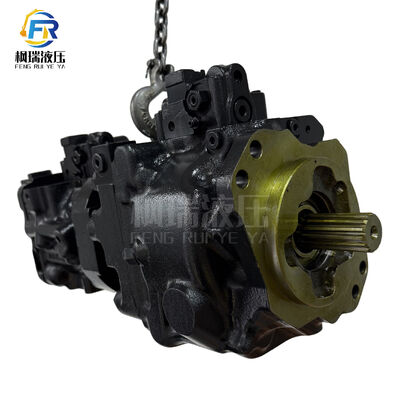

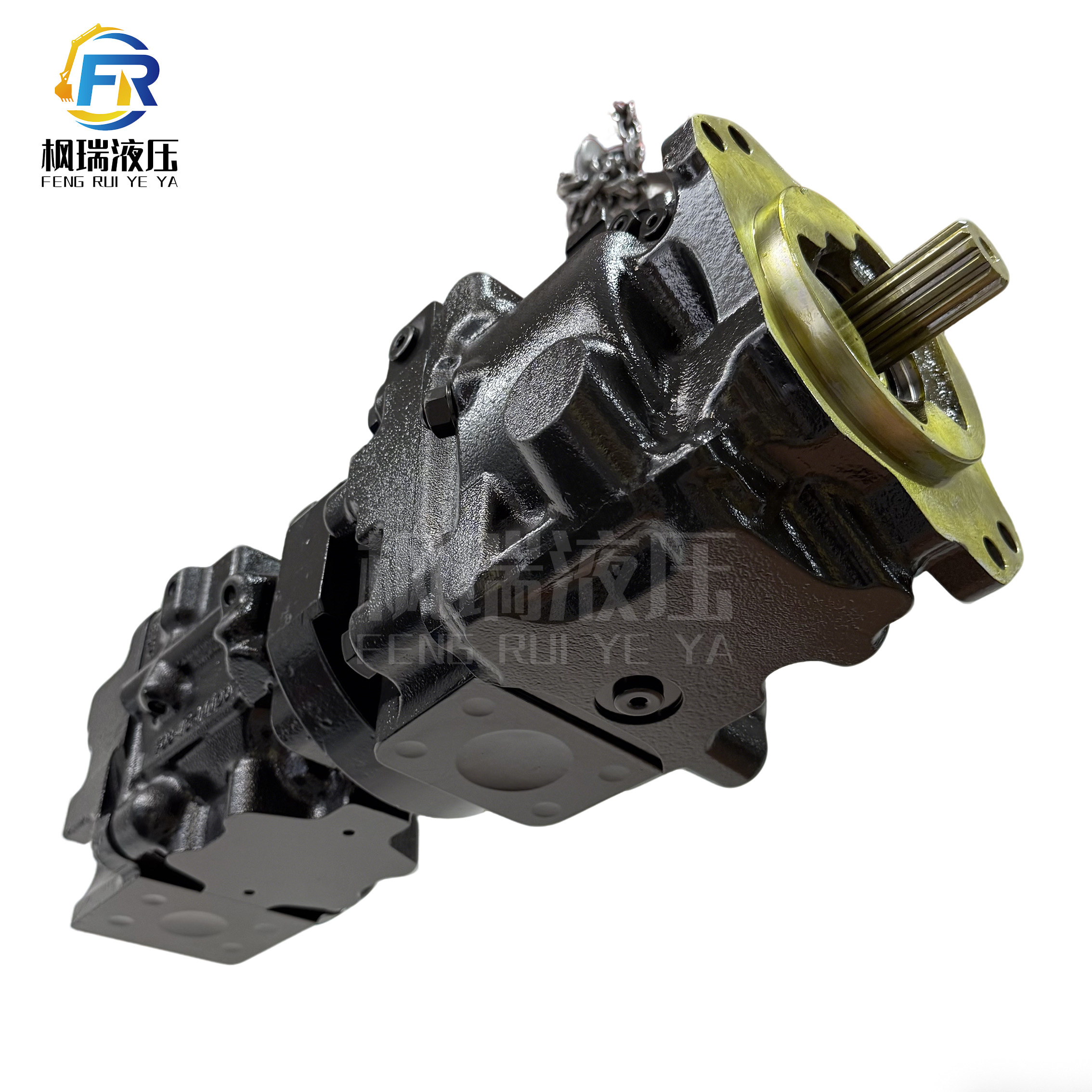

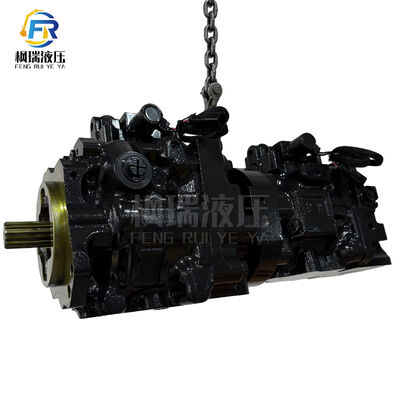

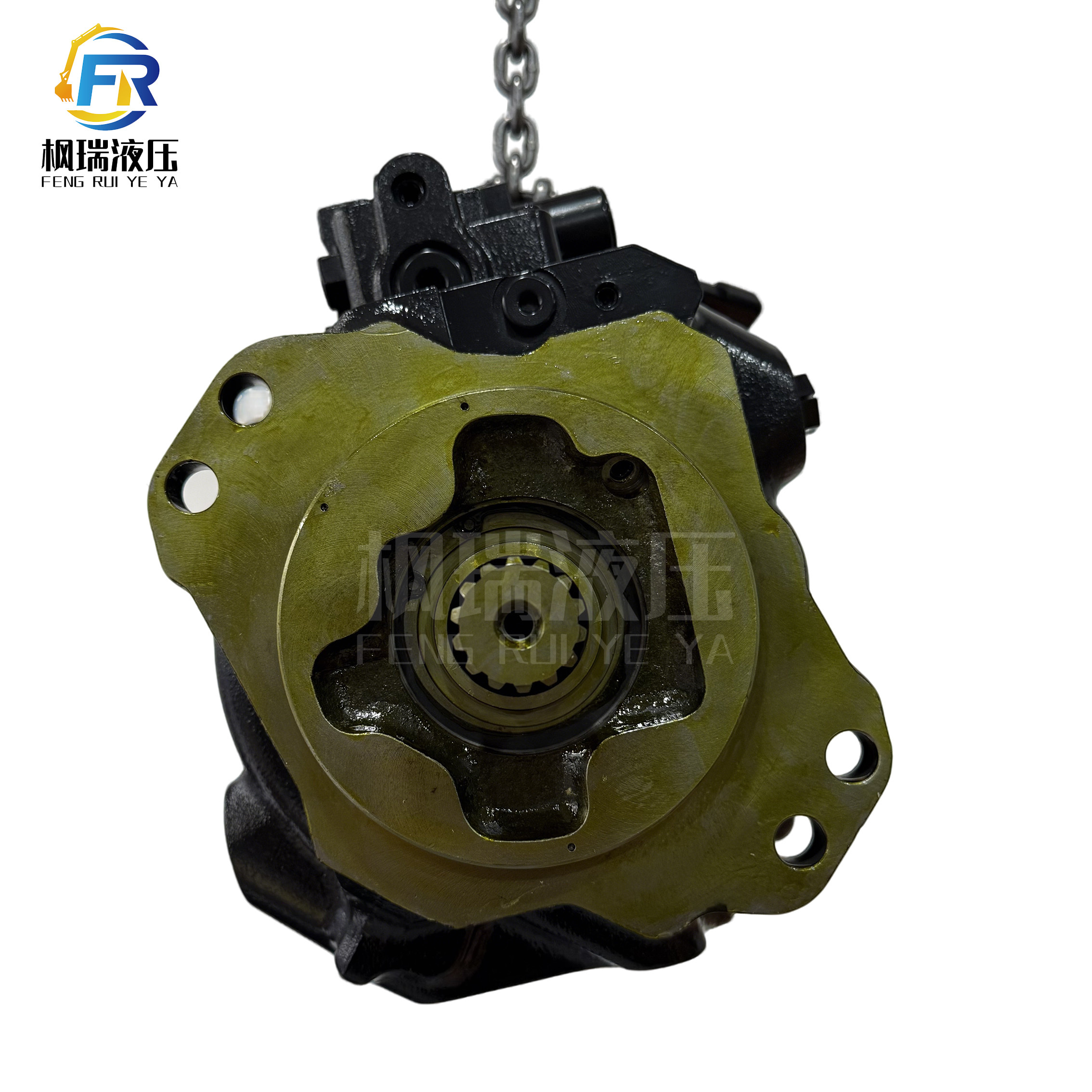

Komatsu 708-1W-00930 Hydraulic Fan Pump With 90cc/rev Displacement
| Brand Name | Komatsu |
|---|---|
| Model Number | 708-1W-00930 |
Product Details
| Pump Model | Komatsu 708-1W-00930 / LPV90 (hydraulic Fan Pump, Piston Type Design, 90cc/rev Displacement) | Pump Type | Fixed Displacement Piston Hydraulic Fan Pump, Designed For Heavy-duty Bulldozer Cooling System Applications |
|---|---|---|---|
| Application | Hydraulic Cooling Fan System Power Source, Providing Pressurized Hydraulic Fluid To Drive Fan Motor In Mining, Quarrying, Construction And Heavy Earthmoving Environments | Compatible Machine | Komatsu D375AX-5, D375A-5E0 (serial #50001+), D375A-5D, D375A-5R Heavy Duty Bulldozers (52-ton Class) |
| Compatible Engine | Komatsu SAA6D170E-5 (D375AX-5, 450kW @ 1800rpm) 6-cylinder Turbocharged Diesel Engine, Liquid-cooled With Heavy-duty Radiator System | Operating Pressure | 24-28 MPa (3480-4060 Psi) (optimized For Heavy-duty Engine Cooling Requirements In Full-load Bulldozing Operations) |
| Flow Rate | 85-95 L/min (22.5-25.1 US Gpm) @ Rated Engine Speed (90cc/rev Displacement) | Control System | Hydraulic Proportional Control, Fan Speed Adjusted Based On Engine Coolant, Hydraulic Oil And Charge Air Temperatures |
| Mounting Position | Engine Front, Gearbox-driven With Heavy-duty Mounting Bracket (vibration-resistant Design For Rough Terrain Earthmoving Applications) | Rotation Direction | Clockwise (fixed For D375 Series Bulldozer Cooling System) |
| Material | High-strength Cast Iron Housing, Forged Steel Pistons And Cylinder Block, Heavy-duty Sealing Components For Dust And Water Resistance, Reinforced Bearing System For High Vibration Environments | Oil Type | Hydraulic Oil ISO VG 46 (mining-grade, Anti-wear, Anti-oxidation, Anti-foam Properties, Suitable For Extreme Temperature Variations From -25°C To +55°C) |
| Weight | Approx. 32-35kg (70.5-77.2 Lbs) (robust Construction For Durability In Demanding Mining/construction Conditions) | Dimensions (L×W×H) | 520mm × 480mm × 420mm (pump Assembly Only, Including Mounting Flange And Hydraulic Connections) |
| Key Features | LPV90 Efficient Piston Design Reduces Fuel Consumption By 7-9%, Precise Hydraulic Control Maintains Optimal Engine Temperature, Reinforced Construction Withstands High Vibration From Earthmoving Operations, Easy Maintenance Access, Designed For 10,000+ Hou | Common Part Numbers | 708-1W-00930 (main Fan Pump For D375AX-5 Series), LPV90 (model Designation), 7081W00930 (numeric Part Number), 708-1W-00920 (previous Model Variant) |
| Mining/Construction Application Benefits | Maintains Optimal Engine Temperature Under Full Load (heavy Earthmoving, 52-ton Machine Weight), Reduces Noise Levels Compared To Fixed-speed Fans, Extends Engine And Component Life, Improves Reliability In Harsh Dust/water Conditions, Compatible With Extr | ||
| Highlight | Komatsu Hydraulic Fan Pump,Hydraulic Fan Pump 90cc/rev,708-1W-00930 |
||
Product Description
Komatsu 708-1W-00930 Fan Pump
Exact replacement fan pump designed specifically for Komatsu D375A-5E0 bulldozers with serial numbers #50001 and up. Features the reliable LPV90 design with 90cc displacement capacity.
Part Number:
708-1W-00930
Design Type:
LPV90
Displacement:
90cc
Application:
Fan Pump Assembly
Compatible Equipment
- Komatsu D375A-5E0 Bulldozer (Serial #50001 and up)
- Heavy-duty construction and mining applications
