Kubota V3307-T Engine 4-Cylinder Turbocharged 3.331L Displacement 47.8kW Rated Power for 7-8 Ton Excavator
| Brand Name | Kubota |
|---|---|
| Model Number | V3307-T |
Product Details
| Engine Model | Kubota V3307-T (V3307-DI-T-E2B/E3B/E4B, V3307-CR-T Variants) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 94mm × 120mm (3.70in × 4.724in) | Displacement | 3.331L (3331cc/203.3 Cu·in) |
| Compression Ratio | 17.0:1 (standard Variant) | Rated Power | 47.8kW (65HP) @ 2000rpm (KX183-3/KX185-3) To 55.4kW (75HP) @ 2600rpm (E3B Variant) (ISO 9249) |
| Maximum Torque | 265-290Nm (195-214lb-ft) @ 1600rpm (depending On Variant) | Fuel System | Mechanical Direct Injection (DI) Or Electronic Common Rail (CR) System |
| Firing Order | 1-3-4-2 | Cooling System | Forced Water Cooling With Thermostat + Optional Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 11L (including Oil Filter) |
| Fuel Consumption | ≤205g/kW·h (at Rated Power, High Fuel Efficiency) | Starter Type | Electric Starter, 24V/3.0kW, With Glow Plug Cold Start System |
| Alternator | 24V/50A (60A Optional) | Dry Weight | Approx. 260-290kg (depending On Variant And Aftertreatment) |
| Dimensions (L×W×H) | 685-720mm × 535mm × 780mm (without Aftertreatment Unit) | Emission Standard | EU Stage II/IIIA/IV, EPA Tier 2/3/4 (depending On Variant) |
| Key Features | Compact Design, High Power-to-weight Ratio, Low Noise/vibration, Excellent Fuel Economy, Easy Maintenance, Cold Start At -25℃, 10000+ Hours Major Overhaul Period | Application | Kubota KX183-3/KX185-3, U80-3/80-5, Sany SY75C, Takeuchi TB175/TB180 (7-8 Ton Class Mini Excavators) |
| Highlight | 4-Cylinder Turbocharged Kubota V3307-T Engine,3.331L Displacement Excavator Engine,47.8kW Rated Power Diesel Engine |
||
Product Description

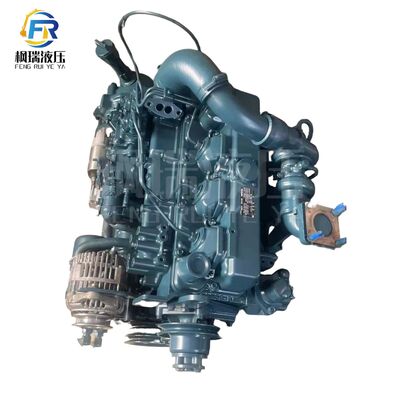

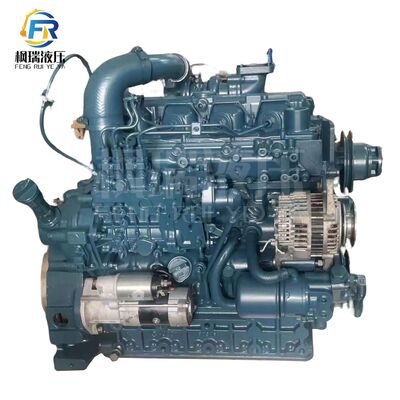

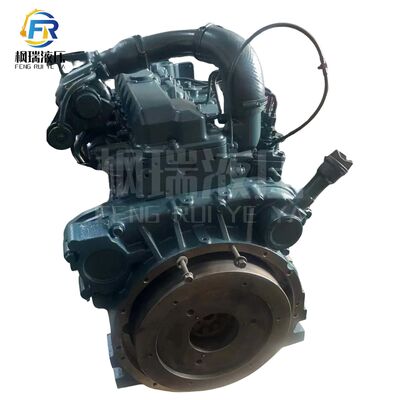

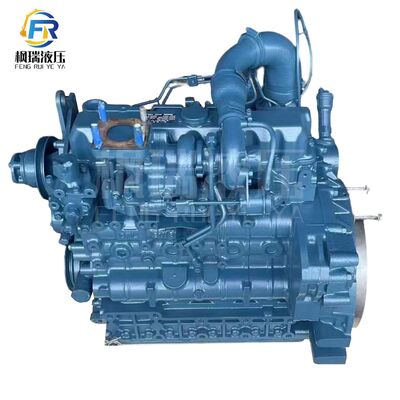

Kubota V3307-T Engine Assembly
High-performance 4-cylinder turbocharged diesel engine assembly specifically engineered for 7-8 ton excavators. The Kubota V3307-T delivers reliable power and exceptional durability for demanding construction applications.
Technical Specifications
Engine Model:
Kubota V3307-T
Configuration:
4-Cylinder Turbocharged
Displacement:
3.331L
Application:
7-8 Ton Excavators
Key Features
- Turbocharged design for enhanced power output
- Optimized for heavy-duty excavator applications
- Reliable performance in demanding conditions
- Complete engine assembly ready for installation
- Kubota engineering quality and durability
