Kubota V1505T Engine Assembly Turbocharged Diesel Engine with 33kW Rated Power and Compact Design for Mini Excavators
| Brand Name | Kubota |
|---|---|
| Model Number | V1505T |
Product Details
| Engine Model | Kubota V1505T (V1505-T-E2B/E3B, V1505-CR-TE5 Variants) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 78mm × 78.4mm (3.07in × 3.09in) | Displacement | 1.498L (1498cc/91.41 Cu·in) |
| Compression Ratio | 23.0:1 (standard Variant) | Rated Power | 33kW (44HP) @ 3000rpm (ISO 9249), Up To 34.7kW (46.5HP) Gross Power |
| Maximum Torque | 118.6Nm (87.5lb-ft) @ 2000rpm (depending On Variant) | Fuel System | Mechanical Direct Injection (DI) Or Electronic Common Rail (CR) System |
| Firing Order | 1-3-4-2 | Cooling System | Forced Water Cooling With Thermostat + Optional Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 6.7L (7.1qts) Including Oil Filter |
| Fuel Consumption | ≤210g/kW·h (at Rated Power, High Fuel Efficiency) | Starter Type | Electric Starter, 12V/2.0kW, With Glow Plug Cold Start System |
| Alternator | 12V/40A (50A Optional) | Dry Weight | Approx. 114-130kg (depending On Variant And Aftertreatment) |
| Dimensions (L×W×H) | 565mm × 433mm × 607mm (without Aftertreatment Unit) | Emission Standard | EU Stage II/IIIA/IV/V, EPA Tier 2/3/4 (depending On Variant) |
| Key Features | Ultra-compact Design, Lightweight (114kg), Low Noise/vibration, Excellent Fuel Economy, Easy Maintenance, Cold Start At -25℃, 10000+ Hours Major Overhaul Period | Application | Kubota KX155/KX161, U50-5/U48-5, Sany SY35U, Takeuchi TB235/TB240 (3-5 Ton Class Mini Excavators) |
| Highlight | 33kW Rated Power Kubota V1505T Engine Assembly,Turbocharged Diesel Engine Excavator Engine,Compact Design Diesel Engine |
||
Product Description

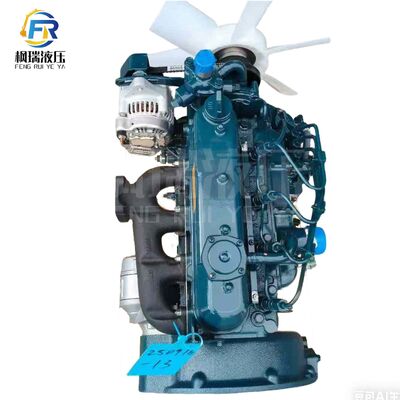

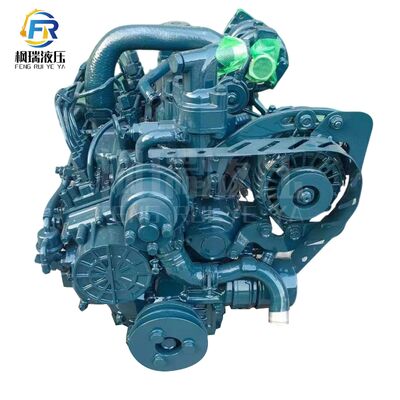

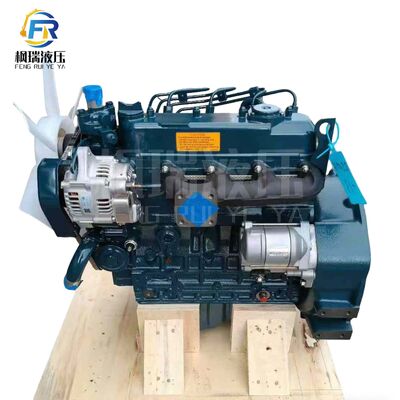

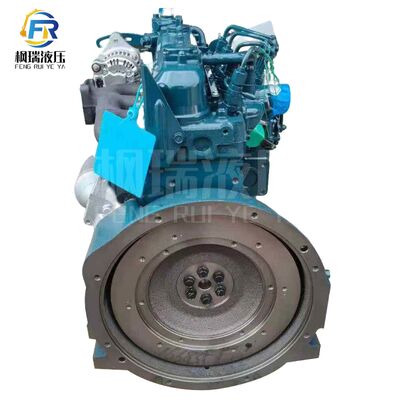

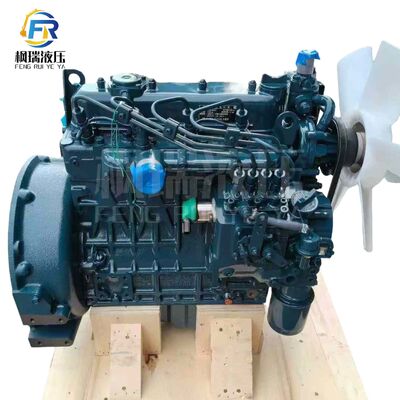

Kubota V1505T Engine Assembly
This Kubota V1505T Engine Assembly is designed as an exact fit replacement for Kubota KX155 and KX161 Mini Excavators. Engineered to meet original equipment specifications, this assembly ensures optimal performance and reliability for your construction equipment.
Key Features:
- Direct replacement for Kubota KX155/KX161 Mini Excavators
- Manufactured to exact OEM specifications
- Ensures reliable performance and durability
- Maintains original equipment power and efficiency
This engine assembly is specifically engineered to provide seamless integration with your Kubota mini excavator, minimizing downtime and ensuring continued productivity.
