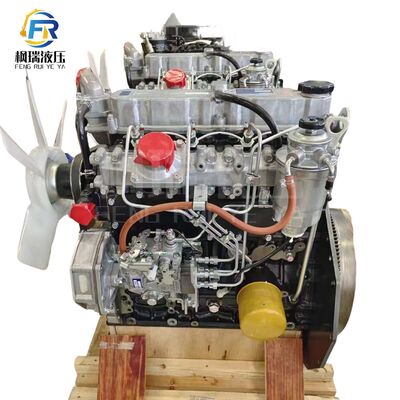

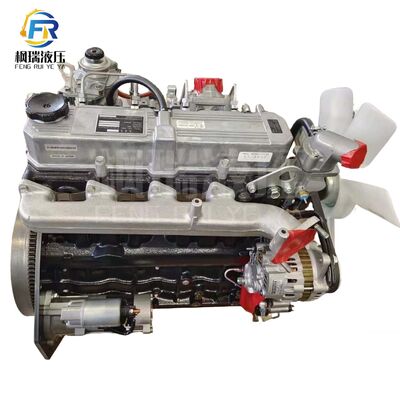

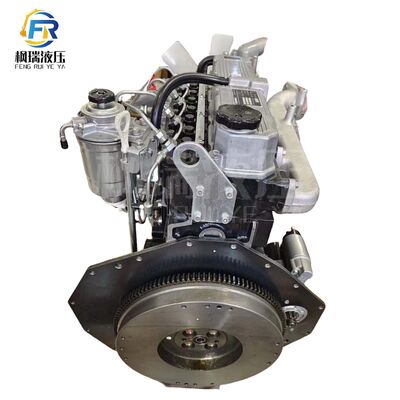

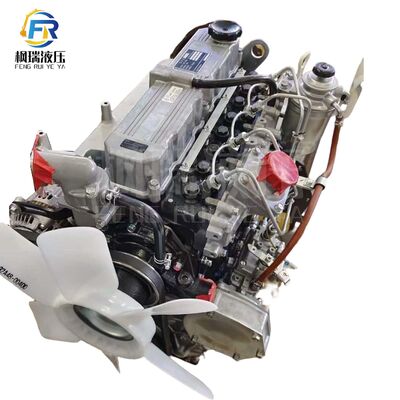

Mitsubishi S4S Engine Assembly 2.5L Displacement 35.3kW Rated Power Diesel Engine For 3-3.5 Ton Forklift
| Brand Name | Mitsubishi |
|---|---|
| Model Number | S4S |
Product Details
| Engine Model | Mitsubishi S4S (S4S-DT Turbocharged Variant Available) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Naturally Aspirated Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 94mm × 102mm (3.70in × 4.02in) | Displacement | 2.5L (2500cc/152.5 Cu·in) |
| Compression Ratio | 18.0:1 (standard Variant) | Rated Power | 35.3kW (48HP) @ 2250rpm (ISO 3046), 35.3kW (48HP) @ 2250rpm (gross Power) |
| Maximum Torque | 177Nm (130.5lb-ft) @ 1700rpm (depending On Variant) | Fuel System | Mechanical Direct Injection (DI) With High-pressure Fuel Pump |
| Firing Order | 1-3-4-2 | Cooling System | Forced Water Cooling With Thermostat + Aluminum Radiator + Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 7.5L (7.9qts) Including Oil Filter |
| Fuel Consumption | ≤230g/kW·h (at Rated Power, Excellent Fuel Economy For Forklift Application) | Starter Type | Electric Starter, 12V/5.5kW, With Glow Plug Cold Start System |
| Alternator | 12V/60A (80A Optional) | Dry Weight | Approx. 245-260kg (depending On Variant And Accessories) |
| Dimensions (L×W×H) | 890mm × 650mm × 780mm (without Aftertreatment Unit) | Emission Standard | EU Stage I, EPA Tier 1, China Non-road Stage I (depending On Variant) |
| Key Features | Compact Design, Reliable Performance, Low Noise/vibration, Easy Maintenance, Cold Start At -15℃, 12000+ Hours Major Overhaul Period, Ideal For Material Handling Applications | Application | JAC CPCD35H, HELI CPCD35, Hangcha CPCD35, Lonking CPCD35, 3-3.5 Ton Class Diesel Forklifts, Small Construction Machinery |
| Highlight | 2.5L Mitsubishi S4S Engine,35.3kW Diesel Engine Assembly,3.5 Ton Forklift Engine |
||
Product Description
Mitsubishi S4S Engine Assembly
High-performance 4-cylinder naturally aspirated engine designed specifically for industrial forklift applications.
Engine Type:
4-Cylinder Naturally Aspirated
Displacement:
2.5L
Application:
3-3.5 Ton Forklifts
Manufacturer:
Mitsubishi
Model:
S4S
Key Features
- Reliable performance for heavy-duty material handling
- Optimized for 3-3.5 ton forklift capacity requirements
- Naturally aspirated design for consistent power delivery
- Direct replacement assembly for easy installation
- Manufactured to OEM specifications
