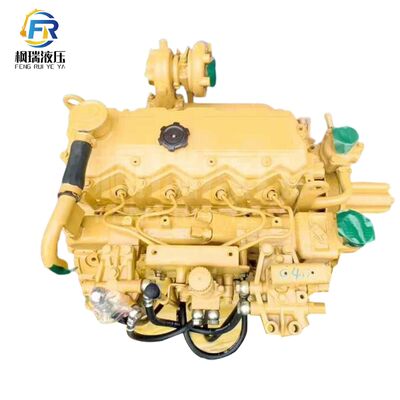

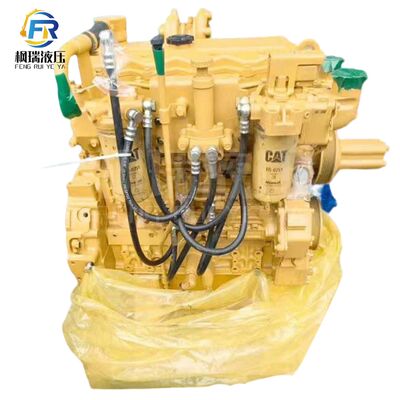

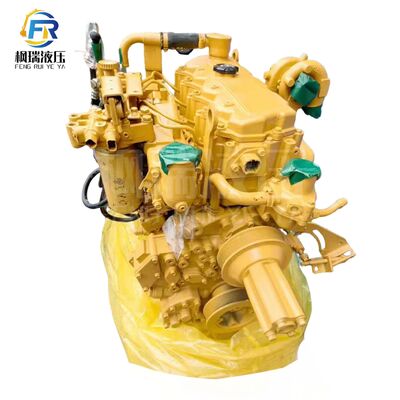

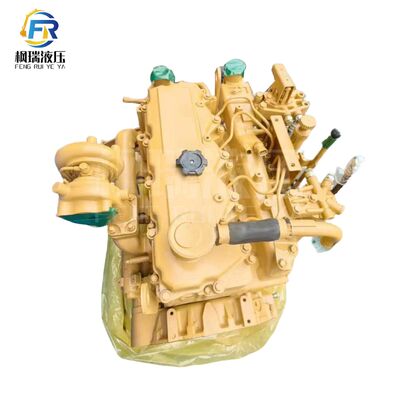

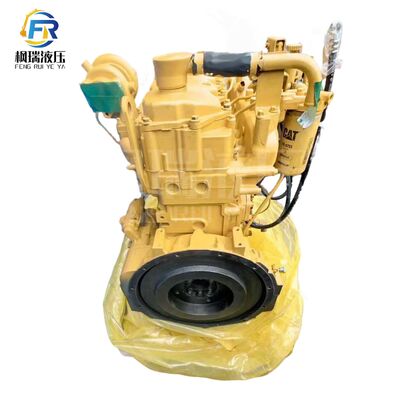

Cat C4.2 ACERT Excavator Engine 4.25L Displacement 98kW 4 Cylinder Engine
| Brand Name | Cat |
|---|---|
| Model Number | C4.2 ACERT |
Product Details
| Engine Model | Cat C4.2 ACERT (excavator Variant For Cat 311D/312D/314D/315D) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged & Air-to-air Aftercooled (ATAAC) Diesel Engine With ADEM A4 Electronic Control Module |
|---|---|---|---|
| Bore × Stroke | 102mm × 130mm (4.02in × 5.12in) | Displacement | 4.25L (4250cc/259 Cu·in) |
| Compression Ratio | 17.5:1 (standard Excavator Variant) | Rated Power | 98kW (131HP) @ 2200rpm (high Power Variant), 91kW (122HP) @ 2000rpm (standard Power Variant) |
| Maximum Torque | 500-540Nm (369-398lb-ft) @ 1400rpm (depending On Power Variant) | Fuel System | High Pressure Common Rail (HPCR) Fuel System, Electronic Control With Advanced ACERT Technology |
| Cooling System | Mechanical/Electric Fan Drive, Forced Water Cooling With Aluminum Radiator + Aftercooler + Closed Crankcase Ventilation (CCV) | Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration + Bypass Filtration |
| Firing Order | 1-3-4-2 | Oil Capacity | 16L (16.9qts) Including Oil Filter |
| Fuel Consumption | ≤190g/kW·h (at Rated Power, Excellent Fuel Efficiency For Mid-size Excavator) | Starter Type | Electric Starter, 24V/7.0kW × 1 (single Starter With Cold Start Aid System, -25°C Cold Start Capability) |
| Alternator | 24V/90A (120A Optional) | Dry Weight | Approx. 400-450kg (depending On Variant And Emissions Package) |
| Dimensions (L×W×H) | 1350mm × 850mm × 1050mm (engine Only) | Emission Standard | EPA Tier 3, EU Stage IIIA (without DPF/SCR System, Reliable Performance In Global Markets) |
| Key Features | Robust Cast Iron Engine Block, Replaceable Wet Cylinder Liners, Forged Steel Crankshaft, Single Cylinder Head With 4 Valves Per Cylinder, ACERT Technology For Optimal Performance And Low Emissions, Excellent Low-speed Torque, 12000+ Hours Major Overhaul Pe | Application | Caterpillar 311D/311D2/312D/312D2/314D/314D2/315D/315D2 Hydraulic Excavators, 11-15 Ton Class Construction/mining Excavators, Wheeled Excavators (M312D/M315D) |
| Common Part Numbers | 324-4039 (engine Assembly), 324-3964 (engine Assembly), 305-4922 (turbocharger), 305-4766 (cylinder Head), 296-4710 (crankshaft) | ||
| Highlight | Excavator Engine 98kW,Excavator Engine 4.25L,Cat C4.2 ACERT 4 Cylinder Engine |
||
Product Description
Cat C4.2 ACERT Engine 4.25L 4-Cylinder
High-performance Cat C4.2 ACERT engine designed for reliable operation in demanding construction environments. This 4.25-liter, 4-cylinder power plant delivers exceptional durability and fuel efficiency for heavy equipment applications.
Engine Model:
Cat C4.2 ACERT
Displacement:
4.25 Liters
Cylinders:
4
Technology:
ACERT Emissions System
Part Number:
324-4039
Compatible Equipment Models
Cat 311D Excavator, Cat 312D Excavator, Cat 314D Excavator, Cat 315D Excavator
