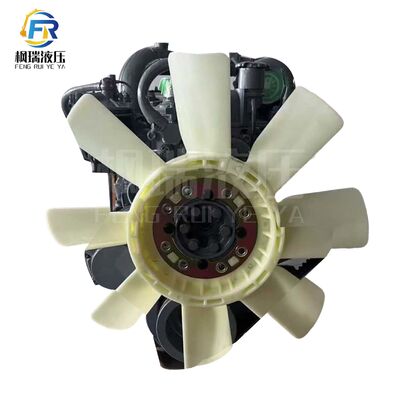

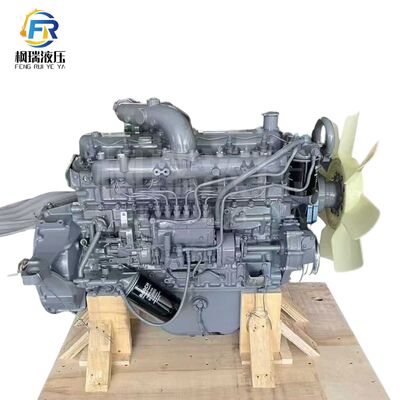

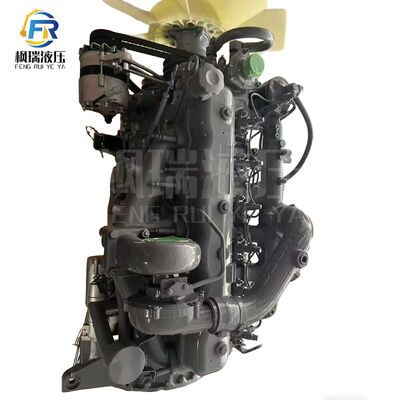

Isuzu 6BD1 6-Cylinder Turbocharged Diesel Engine Assembly with 5.785L Displacement and 132kW Rated Power for 28 Ton Excavator
| Brand Name | Isuzu |
|---|---|
| Model Number | 6BD1 |
Product Details
| Engine Model | Isuzu 6BD1 (6BD1-T, 6BD1-TC Variants) | Engine Type | Vertical, Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 102mm × 118mm (4.02in × 4.65in) | Displacement | 5.785L (5785cc/353.0 Cu·in) |
| Compression Ratio | 17.5:1 (standard Variant) | Rated Power | 132kW (177HP) @ 2200rpm (ISO 3046), 177HP (132kW) @ 2200rpm (gross Power) |
| Maximum Torque | 620Nm (457.3lb-ft) @ 1600rpm (depending On Variant) | Fuel System | Mechanical Direct Injection (DI) With High-pressure Fuel Pump |
| Firing Order | 1-5-3-6-2-4 | Cooling System | Forced Water Cooling With Thermostat + Aluminum Radiator + Oil Cooler |
| Lubrication System | Pressure Feed With Full-flow Filtration + Bypass Filtration | Oil Capacity | 16.5L (17.4qts) Including Oil Filter |
| Fuel Consumption | ≤225g/kW·h (at Rated Power, High Fuel Efficiency) | Starter Type | Electric Starter, 24V/7.5kW, With Glow Plug Cold Start System |
| Alternator | 24V/80A (100A Optional) | Dry Weight | Approx. 480-520kg (depending On Variant And Aftertreatment) |
| Dimensions (L×W×H) | 1220mm × 640mm × 1020mm (without Aftertreatment Unit) | Emission Standard | EU Stage II, EPA Tier 2 (depending On Variant) |
| Key Features | Robust Construction, High Torque Output, Low Noise/vibration, Excellent Fuel Economy, Easy Maintenance, Cold Start At -20℃, 15000+ Hours Major Overhaul Period | Application | Sumitomo SH280/SH280LC, Hitachi EX270/EX280, Case CX290, 27-29 Ton Class Medium-heavy Excavators |
| Highlight | 6-Cylinder Turbocharged Excavator Engine,5.785L Displacement Diesel Engine,132kW Rated Power Engine Assembly |
||
Product Description
Isuzu 6BD1 Engine Assembly
High-performance 6-cylinder turbocharged diesel engine assembly designed specifically for 28-ton excavators. This robust power unit delivers reliable performance in demanding construction and mining applications.
6-cylinder turbocharged diesel configuration
5.785L displacement for optimal power output
Engineered for 28-ton excavator applications
Complete assembly ready for installation
Durable construction for heavy-duty operations
| Specification | Details |
|---|---|
| Engine Model | Isuzu 6BD1 |
| Cylinder Configuration | 6-Cylinder |
| Aspiration | Turbocharged |
| Displacement | 5.785L |
| Application | 28 Ton Excavator |
| Assembly Type | Complete Engine Assembly |
