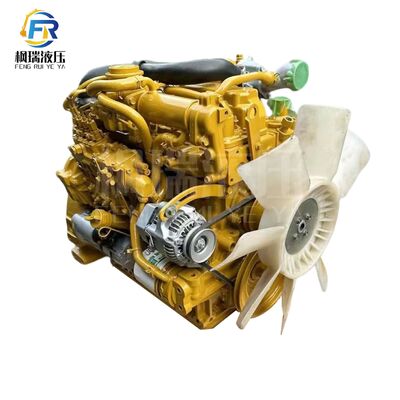

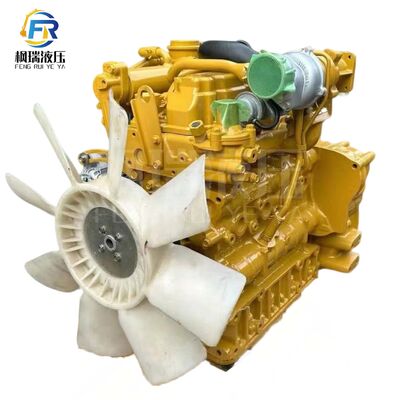

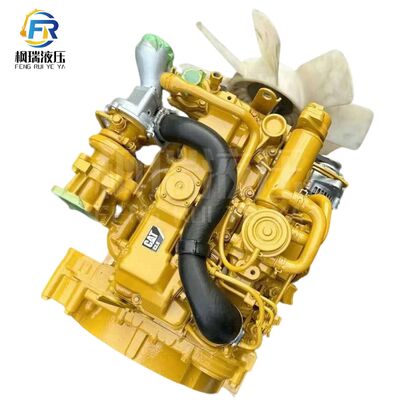

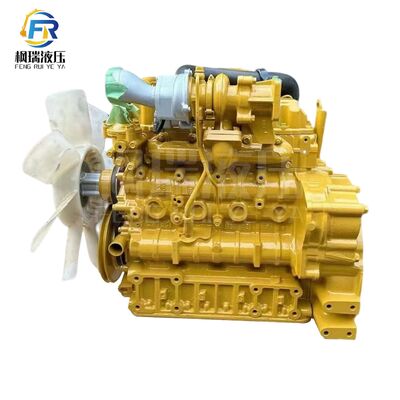

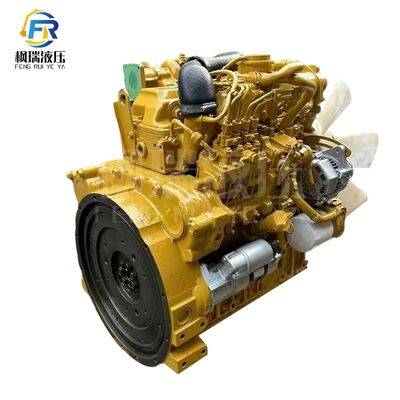

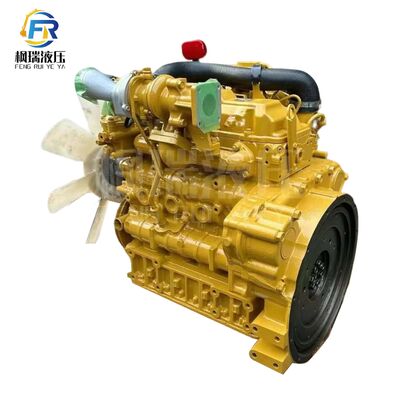

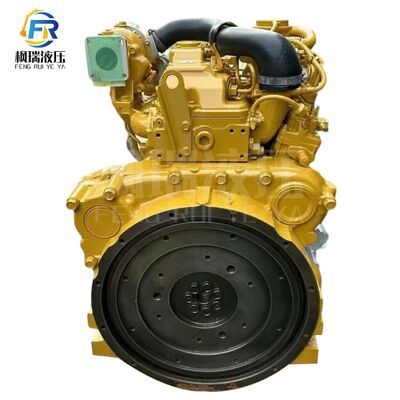

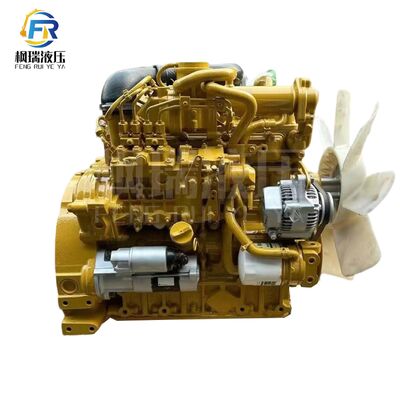

Cat C2.6 DI Turbo Excavator Engine 2.6L 41.5kW EPA Tier 2 Diesel Engine
| Brand Name | Cat |
|---|---|
| Model Number | C2.6 DI Turbo |
Product Details
| Engine Model | Cat C2.6 DI Turbo (excavator Variant For Cat 305.5E/306E/307E Series) | Engine Type | Vertical, Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Direct Injection (DI) Diesel Engine |
|---|---|---|---|
| Bore × Stroke | 87mm × 110mm (3.43in × 4.33in) | Displacement | 2.6L (2615cc/159.6 Cu·in) |
| Compression Ratio | 18.0:1 (standard Excavator Variant) | Rated Power | 41.5kW (55.6HP) @ 2000rpm (net Power/ISO 9249), 43kW (57.6HP) @ 2000rpm (gross Power/SAE J1995) |
| Maximum Torque | 240-260Nm (177-192lb-ft) @ 1400rpm (depending On Application Calibration) | Fuel System | Mechanical Or Electronic Direct Injection System (depending On Variant) |
| Firing Order | 1-3-4-2 | Cooling System | Mechanical Fan Drive, Forced Water Cooling With Aluminum Radiator + Closed Crankcase Ventilation (CCV) |
| Lubrication System | Gear Pump, Force-lubrication With Full-flow Filtration | Oil Capacity | 9.5L (10.0qts) Including Oil Filter |
| Fuel Consumption | ≤220g/kW·h (at Rated Power, Excellent Fuel Efficiency For Mini Excavator) | Starter Type | Electric Starter, 24V/5.5kW × 1 (single Starter With Cold Start Aid System, -15°C Cold Start Capability) |
| Alternator | 24V/60A (70A Optional) | Dry Weight | Approx. 280-320kg (depending On Variant And Accessories) |
| Dimensions (L×W×H) | 1100mm × 650mm × 850mm (engine Only) | Emission Standard | EPA Tier 2, EU Stage II (397-0389/397-0390 Standard Variant) |
| Key Features | Robust Cast Iron Engine Block, Replaceable Wet Cylinder Liners, Forged Steel Crankshaft, Single Cylinder Head With 4 Valves Per Cylinder, Proven Reliability In Harsh Environments, 10000+ Hours Major Overhaul Period, Specifically Designed For 5-7 Ton Mini E | Application | Caterpillar 305.5E/305.5E2/306E/306E2/307E/307E2 Hydraulic Excavators, 5-7 Ton Class Construction/mining Mini Excavators, Compact Wheel Loaders (906H/907H) |
| Common Part Numbers | 397-0389 (engine Assembly), 397-0390 (engine Assembly), 320-3068 (fuel Injector), 320-3070 (water Pump), 320-3072 (oil Cooler) | ||
| Highlight | Turbo Excavator Engine,Excavator Engine 41.5kW,EPA Tier 2 Diesel Engine |
||
Product Description
Cat C2.6 DI Turbo Engine
High-performance 2.6L 4-cylinder direct injection turbo engine designed for reliable operation in demanding industrial applications.
Engine Model: Cat C2.6 DI Turbo
Displacement: 2.6 Liters
Cylinder Configuration: 4-Cylinder
Fuel System: Direct Injection with Turbocharging
Part Number: 397-0389
Compatible Equipment Models:
- Cat 305.5E Excavator
- Cat 306E Excavator
- Cat 307E Excavator
This genuine Cat engine replacement ensures optimal performance, fuel efficiency, and durability for your excavator equipment.
