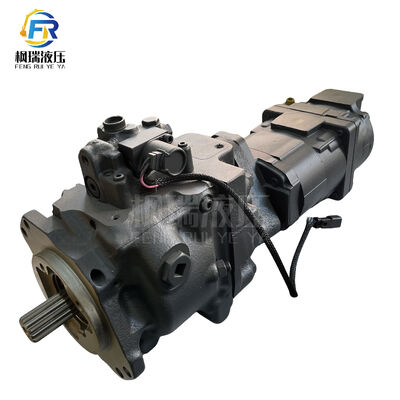

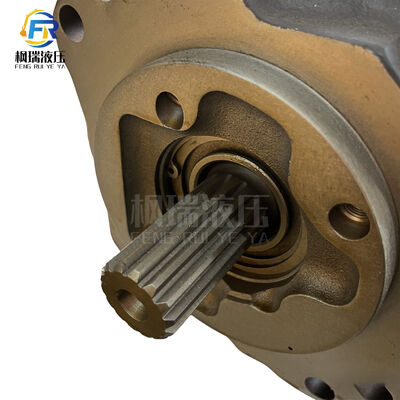

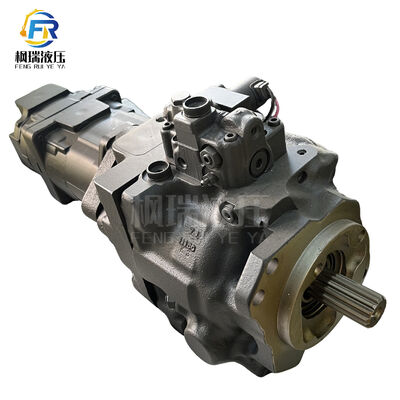

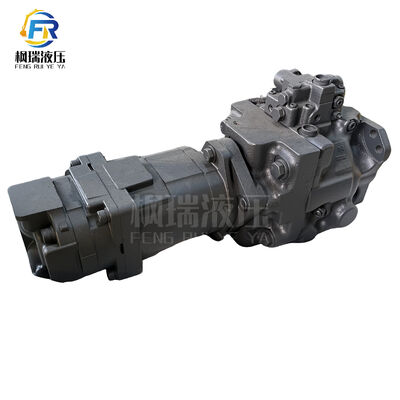

Excavator Hydraulic Pump 708-1U-00200 75cc/rev Displacement Electronic Proportional Control
| Brand Name | Komatsu |
|---|---|
| Model Number | 708-1U-00200 |
Product Details
| Pump Model | Komatsu 708-1U-00200 / 708-1U-00202 / 708-1U-00213 (hydraulic Fan Pump, LPV71 Series, 75cc/rev Displacement) | Pump Type | Variable Displacement Axial Piston Pump, Hydraulic Driven, LPV71 Design For Efficient Fan Speed Control |
|---|---|---|---|
| Application | Hydraulic Cooling Fan System, Providing Power For Large-diameter Cooling Fan In Mining And Heavy Construction Environments | Compatible Machine | Komatsu PC650-8 (400-420kW/536-563HP, 65-70 Ton), PC600-8 (380kW/510HP, 60-65 Ton), PC700-8 (450kW/603HP, 70-80 Ton) Mining Hydraulic Excavators |
| Compatible Engine | Komatsu SAA6D140E-5 (PC650-8, 420kW @ 1800rpm) 6-cylinder Turbocharged Diesel Engine | Operating Pressure | 24-28 MPa (3480-4060 Psi) (optimized For Medium-high Power Engine Cooling Requirements) |
| Flow Rate | 60-75 L/min (15.8-19.8 US Gpm) @ Rated Engine Speed (75cc/rev Displacement) | Control System | Electronic Proportional Control, Fan Speed Adjusted Based On Engine Coolant, Hydraulic Oil And Charge Air Temperatures |
| Mounting Position | Engine Front, Gearbox-driven Or PTO-driven (heavy-duty Mounting Bracket For Vibration Resistance) | Rotation Direction | Clockwise (fixed For Mining Excavator Cooling System) |
| Material | High-strength Cast Iron Housing, Forged Steel Pistons And Cylinder Block, Heavy-duty Sealing Components For Dust And Water Resistance | Oil Type | Hydraulic Oil ISO VG 46 (mining-grade, Anti-wear, Anti-oxidation, Anti-foam Properties) |
| Oil Capacity | 2.5-3.0L (0.66-0.79 US Gal) | Weight | Approx. 65-75kg (143-165 Lbs) (robust Construction For Durability In Demanding Conditions) |
| Dimensions (L×W×H) | 580mm × 420mm × 450mm (pump Assembly Only, Including Mounting Bracket) | Key Features | Precision-engineered, Rugged Construction, Quick Delivery |
| Common Part Numbers | 708-1U-00200 (main Fan Pump For PC650-8#50001-Up), 708-1U-00202 (alternate Part Number), 708-1U-00213 (related Model), EEN00047-00 (engineering Part Number) | Mining Application Benefits | Maintains Optimal Engine Temperature Under Full Load, Reduces Noise Levels Compared To Fixed-speed Fans, Extends Engine And Component Life, Improves Reliability In Harsh Dust/water Conditions |
| Product Name | Excavator Hydraulic Pump | Designed | For Heavy-duty Applications |
| Stock Availability | In Stock | Packing | Standard Exporting Packing |
| Highlight | Hydraulic Pump 708-1U-00200,Excavator Hydraulic Pump 75cc/rev |
||
Product Description
Komatsu Hydraulic Fan Pump 708-1U-00200 For PC650-8 PC600-8 PC700-8 Mining Excavator 65-80 Ton
Komatsu LPV71 Series Hydraulic Fan Pump with 75cc/rev Displacement and Electronic Proportional Control for 24-28 MPa Operating Pressure in Mining Excavators
Product Specifications
Part Number:
708-1U-00200
Series:
LPV71 Series
Displacement:
75cc/rev
Control Type:
Electronic Proportional Control
Operating Pressure:
24-28 MPa
Compatible Equipment Models:
Komatsu PC650-8, PC600-8, PC700-8 Mining Excavators (65-80 Ton Class)
